Agilent hp E5394A soft touch connectorless probe-single
Agilent HP E5394A Soft Touch Connectorless Probe-Single
Signal Access 34 channels: 32 single-ended data, 2 single-ended clock
Probe Performance < 0.7 pF equivalent load capacitance > 2.5 Gb/s maximum data rate
Measure signals with as little as 500 mV p-p signal amplitude
Requires up-front design of original soft touch connectorless footprint on PC board (no connector on the target board)
Micro spring-pin technology provides reliable contact to signal pads even when probing uneven or contaminated board surfaces
Top-side retention module eliminates need to access back of the board
Logic analyzers with 40-pin cable connectors Logic Analyzer Cable Connectors
All board surfaces, including lead free
Original soft touch connectorless footprint
Used, Pulled from a working environment.

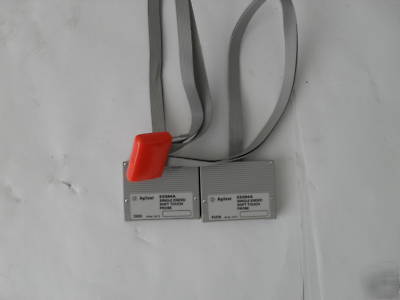

Actual item shown in the picture, Sold as pictured.
