Analog devices AD7008 cmos dds modulator qty 1

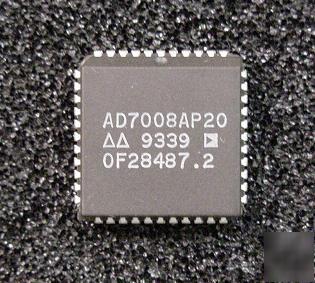

Analog Devices AD7008AP20 CMOS DDS Modulator
DESCRIPTION: The AD7008 direct digital synthesis chip is a numerically controlled oscillator employing a 32-bit phase accumulator, sine and cosine look-up tables and a 10-bit D/A converter integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation, frequency modulation, and both in-phase and quadrature amplitude modulation suitable for QAM and SSB generation.
Clock rates up to 20 MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation may be effected by loading registers either through the parallel microprocessor interface or the serial interface. A frequency-select pin permits selection between two frequencies on a per cycle basis.
The serial and parallel interfaces may be operated independently and asynchronously from the DDS clock; the transfer control signals are internally synchronized to prevent metastability problems. The synchronizer can be bypassed to reduce the transfer latency in the event that the microprocessor clock is synchronous with the DDS clock.
A power-down pin allows external control of a power-down mode (also accessible through the microprocessor interface). The AD7008 is available here in 44-pin PLCC package.
* On-Chip COSINE and SINE Look-Up Tables
* Frequency, Phase and Amplitude Modulation
* Parallel and Serial Loading
* Software and Hardware Power Down Options
* Temperature Range: -40 Degrees C to +85 Degrees C
* Frequency, Phase or Amplitude Modulators
