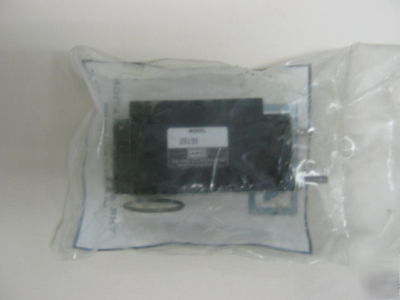

Aro 20191 circuit board mounted poppet valve
ARO 20191 CIRCUIT BOARD MOUNTED POPPET VALVE
3-Way poppet with 1/4 ports. Plumb normally open (passing) or closed (non-passing.)
Pilot signal port comes from any one of A, B, C ports on Circuit Cover Plate.
Flow is 46.4 SCFM (21.9 dm3/s) at 90 PSI (6.3 bar) supply and 75 PSI (5.2) outlet.
Mounts directly to circuit board, utilizing space of one standard element. Must be
mounted at periphery of circuit.
Dimensions: 1 15/64 x 1 1/2 x 2 31/32 (31.4mm x 38.1mm x 75.4mm)
