Curtis motor controller 1204-410 36 48V ez-go club car

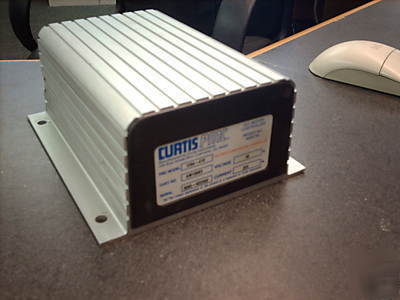

CURTIS PMC D.C. MOTOR CONTROLLER 1204-410 36 or 48V 225A
Curtis PMC Model 1204 is power
MOSFET electronic motor speed controllers designed to
provide smooth, silent, efficient and cost effective speed,
Curtis PMC MOSFET motor speed controllers are ideal for
a variety of electric vehicle applications, including industrial
High frequency switching and ultra low voltage drops
provide very high efficiency and silent operation. Costs,
heatsinking requirements and motor and battery losses
are reduced. Low end torque, range and battery life are
Environmental protection provided by a rugged anodized
aluminum extrusion housing. Simple mounting and wiring
with push-on type connectors for control signals. Plated
solid copper busses used for all power connections.
Thermal protection and compensation circuit provides
constant current limit over operating range and under
temperature and over temperature cutback. No sudden loss
of power under any thermal conditions.
No adjustments are required.
Simple installation Uses a two wire throttle
Potentiometer fault protection circuitry disables controller if
High pedal disable prevents controller operation if key is
turned on while throttle is applied.
Plug braking diode internal to controller.
Frequency of Operation: 15 kHz
Standby Current: less than 20 mA
Standard Throttle Input: 5-0k ohms 10%
Weight: 1204/1204S: 1.8 kg (4 lbs);
Full Power Operating Temperature Range:
-25 C to 75 C (controller temperature)
