Hp 3764A digital transmission analyzer 07/J31 & manual

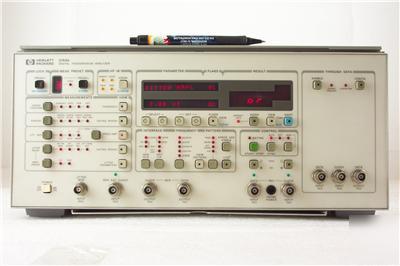

HP 3764A Digital Transmission Analyzer 07/J31 & Manual
compatibility codes SH1, AH1, T5, TE0, LE0, SR1, RL1, PP0, DC1, DT0, C0.
The HP 3764A Digital Transmission Analyzer is used for analyzing the error performance of high speed digital transmission systems.
** Dedicated 140 Mb/s digital transmission analyzer with pattern generation, error detection and error analysis capabilities
** Error analysis provision includes error performance measurements for testing the proposed Integrated Services Digital Networks (ISDN)
** Portable single unit construction
** Generator Internal clock 139.264 MHz; offset clocks + and - 15 ppm; external clock 1 kHz to 170 MHz
** Generator Data outputs: CMI format at 139.264 Mb/s; Binary RZ or NRZ from 1 kb/s to 170 Mb/s, ECL levels, 75 ohm unbalanced
** Receiver Recovered Clock: 139.264 3 Mb/s
** Receiver Binary Clock: 1 kHz to 170 MHz
** Receiver Data Inputs: 75O Terminated mode; Monitor mode; Binary, RZ or NRZ, ECL levels; External Error, ECL levels
