New 24'' x 144" tan itz vertical band type plate saw huge

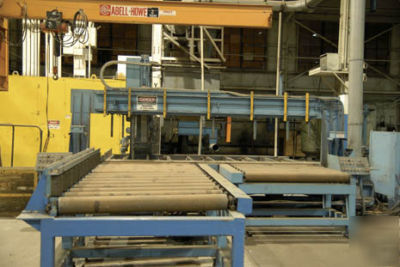

1. Used TANNEWITZ Mdl. 6024MH Vertical Band Type Plate Saw; Traveling Head Design, S/N:95022
Length............................................ 144" (max)
Width............................................. 6" (minimum) No Maximum
Thickness................................... 24" (max)
Throat Depth........................................................ 60"
Work Thickness................................................... 0 - 24" max
Travel of Saw Head.................................... 0 144" (nominal)
Wheel Diameter.................................................... 36"
Blade Width Capacity................................. 1/2" to 2"
Blade Length........................................... "
Blade Speed (Variable)............................... 80 3,600 F.P.M.
Guide Post Size....................................... 1 " x 2 "
Table Size (Main)...................................... 86" x 144" (nominal)
Table Capacity (Main)................................ lbs. (est.)
Table Height............................................. 36" (from floor)
Upper Wheel Adjustment.............................. 4" (nominal)
Main Drive Motor................................................ 15 H.P.
Electrical Characteristics....................................... 220/440 VAC
Complete Electrical Controls with Operators Control Station
5 H.P. Variable Speed Band Saw Drive
Traveling Head with Dual Precision Guide Rails and Power Feed
Overall Dimensions: L-R x 1 F-B x High (est.)
Pit Size: 208" L-R x 51" F-B x 46" Deep
Price: $149,500..............................................F.O.B....................................................Casa Grande, AZ
For more information you can contact Charles or Danny in any of the following ways:
