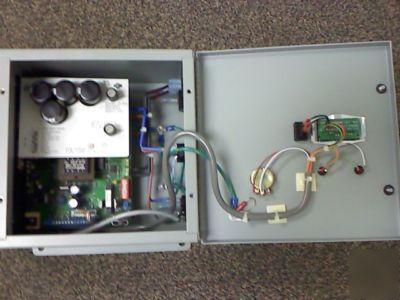

New atac active tuning amplitude controller series 1000-
The ATAC is a cost effective, self-tuning controller for electromagnetically driven vibratory feeder systems. It is specifically designed to eliminate manual tuning with optimizing feeder performance and minimizing operational costs. The true closed loop controller maintains the desired vibration intensity while exciting the feeder at its natural frequency. The all-digital design results in a plug and play setup procedure and an intuitive interface. The ATAC easily interfaces to a photocell or PLC.
ATAC Simultaneously Performs Two Primary Functions:
* Amplitude Control Maintains a desired vibration intensity.
* Active Tuning Automatically excites a feeder at its natural frequency.
ATAC Benefits When Building A Feeder:
* Freedom to choose any vibration frequency (40-160 Hz)
* Mechanical tuning is drastically reduced if not eliminated.
* Often smaller and cheaper magnetic coils can be used with superior performance.
ATAC Benefits When Operating a Feeder:
* Vibration intensity is maintained over a wide range of loading conditions for consistent performance.
* Feeders in minor disrepair (broken springs, etc.) can still operate, eliminating the need for unscheduled maintenance.
* Sinusoidal output power for smooth, quiet operation.
* Input power isolation eliminates the effect of line voltage variations on bowl performance.
* Many more feeders can be placed on the same electrical circuit without circuit overload.
* Operating frequency is continuously tuned to the feeder s natural frequency for perfect tuning.
* Compared to variable transformer or triac type controllers, the ATAC controller typically requires half the power, minimizing operational costs.
* Set point can be slaved to a PLC via an analog output.
* Easy interfacing to a photocell or proximity switch.
* Adjustable full-scale vibration intensity.
* 110 Volt and 220 Volt versions available.
* High Power (HPAT-2050) 220 Volt. 12 Amps RMS model available.
* LCD Display for both frequency and feeder speed.
* Open frame versions available for panel mount applications.
ATAC Differs From Other Controllers:
* ATAC generates true sinusoidal output power, minimizing coil heating and ensuring smooth, quiet operation.
* ATAC s proprietary input power isolation eliminates the effect of line voltage variations on bowl performance.
Please look at link for more info on this unit. http://tsengineering.com/atac1050_spec.htm
