New nor-cal pneumatic valve high vacuum stainless iso
NEW Nor-Cal Pneumatic Valve High Vacuum Stainless ISO

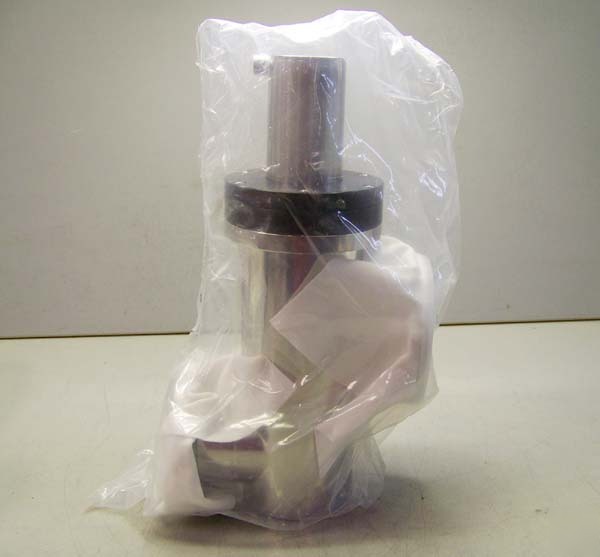

This is a New Nor-Cal Pneumatic Viton Seal Stainless Steel In Line Valve for High Vacuum service. The part number is ILVP-3002-ISO. The valve inlet/outlet diameter is a nominal 3". There are ISO-80 KF-style Flanges on the inlet and outlet. This item is sealed in factory plastic bag with port caps. However, there is a tape repair to a small tear in the plastic bag.
* Materials: Electropolished 304 Stainless Steel
* Bellows: Welded AM-350 Stainless Steel
* Actuation: Air to open, air to close
* Operating pressure: 60-80 psig
* Differential pressure: 20 psia across valve seat
* Maximum temperature: Sustained <=150 C
* Vacuum range: >= 1x10^-9 Torr High Vacuum
