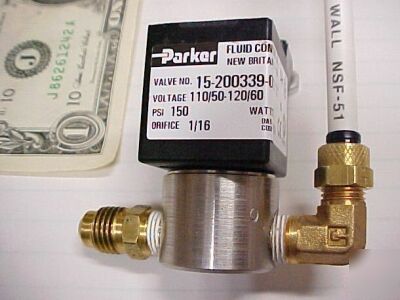

New parker 120 volt stainless solenoid valves, 150 psi
These were purchased at a surplus liquidation recently and they are brand new, sealed in plastic bags, in the original factory boxes. They operate on ordinary house current (110V - 120V AC), and they have a 150PSI pressure rating, so these would be excellent for many projects around the home, business, farm, or factory. The operation is Normally Closed (N/C), which means nothing flows through them until electricity is applied to the terminals.
The valve bodies are non-magnetic Type 303 stainless steel with 1/8" NPT female threads, and they have brass fittings in each port. The fittings were installed with Teflon sealant, so they are easily removed if you so desire. Twirl a small wire brush around inside the female valve threads to clean them up, and the brass fittings are just a memory. The bottom of the valve base is drilled and tapped for #8-32 machine screws, and the holes are spaced .750" OC (on centers). The stainless body has a diameter of .995" and a height of .805." By loosening the nut on top, the solenoid can be rotated 360 degrees around the valve's actuating stem, if you want to change the approach angle of your electrical or fluid connections.
The "IN" (I) port has a Parker 1/8" NPT x 1/4" brass flare fitting. The flare end has 7/16-20 threads, and it appears to be SAE because the shoulder angle looks too sharp for a JIC. The "OUT" (O) port comes equipped with a 1/8" NPT x 1/4" OD Parker Poly-Tite brass elbow. In the tube end of the elbow, there is a piece of 1/4" x .040" wall x 3" beverage tubing, marked "NSF-51." Connected to the distant end of the tubing is a handy 1/4" OD John Guest push-to-connect tube fitting, also marked "NSF-51." The fittings themselves, if bought from a retail supplier, would cost you almost as much as we are asking for the whole shebang - valve and all.
The solenoid measures 1.905" including the terminals, width is 1.025," and the overall height is 1.300." The solenoid inside diameter is .376" at the top, .438" at the bottom, and the length through the bore is 1.125." The terminals are 1/4" male spade / quick connect. The overall assembled height of the valve and solenoid, excluding the fluid attachments, is 2.125."
There is a part number stamped directly on the solenoid:
3M1S1P3, and below that: 4/5 CCB.
The label on the solenoid reads as follows:
(UL Recognized, CSA, CE, and NSF component certifications)
