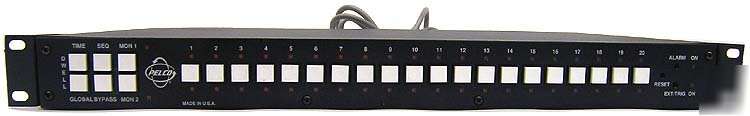

Pelco VA6220 matrix switch 20-camera switcher sequental
PELCO VA6220 MATRIX SWITCH 20-CAMERA SWITCHER SEQUENTAL
Pelco Matrix Switch 20 x Camera 2 x Monitor Switcher Sequential
Model: VA6220 with Rack Brackets
With 20 x Camera Inputs / 2 x Monitor Outputs
Voltage: 120V, 8-Watts, 50/60 Hz
The Pelco VA6100 and VA6200 Series are competitively priced sequential switchers designed to manually or automatically switch twenty (20), twelve (12), eight (8) or four (4) cameras to one (1) or two (2) monitors. (This series of sequential switchers replaces the VA500/VS500 Series of single and dual output switchers.)
The VA6100 Series switchers are single monitor output switchers without Coaxitron control compatibility. The VA6200 Series are equipped with a second monitor output for Coaxitron compatibility.
The VA6100 and VA6200 are equipped with alarm inputs. If an alarm occurs, the switcher will automatically lock and direct the input to the currently selected monitor. When an alarm is cleared, the unit will return to its previously operating dynamic state. Multiple alarms sequence at a 1 second dwell time.
All models include external trigger and camera ID as standard features. Camera dwell time can be set individually or globally for all cameras. The dwell time is adjustable from 1 to 60 seconds, in one (1) second increments.
In addition, all models feature terminating inputs that can be easily converted to looping inputs via jumpers on the motherboard. Monitor output for camera ID is also changeable via jumpers on the motherboard.
4, 8, 12 or 20 inputs (terminating or looping)
Single output on VA6100 Series
Dual outputs on VA6200 Series
Camera ID and external trigger standard on all models
Optional alarm breakout board for easy wiring or alarm inputs
