Pre-owned 32X zoom sokkia b-1 auto level

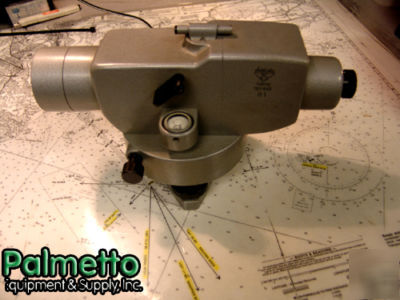

Preowned SOKKIA (Sokkisha)B1 Automatic Level
32X Zoom...Powerful, Clean and Calibrated...Clean Condition!
ONLY $600 MSLP $1,795.00 (VERY CLEAN INSTRUMENT, Case is a little worn)includes Case, rain guard, and Tool Kit
Sokkia B1 Automatic Level Preowned
* Accuracy of plus or minus .003 feet in 1 mile of double run leveling.
* Two-speed focusing for fast sighting.
* Precise reticle with stadia.
* Tough, magnetically dampened, wire hung compensator with a setting accuracy of 0.3".
Compensator PL1 (split-image tubular vial); all others (wire-hung; magnetically damped)
Leveling Accuracy (all models) in 1.0 km (1 mile) of double-run leveling
Level Vial (all models) circular
More about the B1 Level by Sokkia

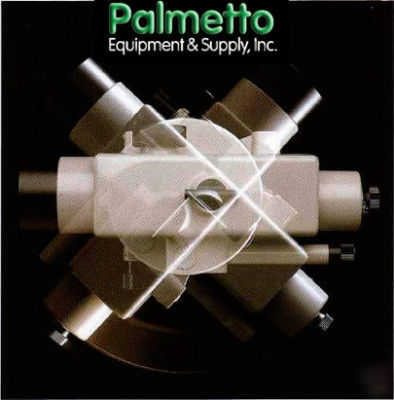

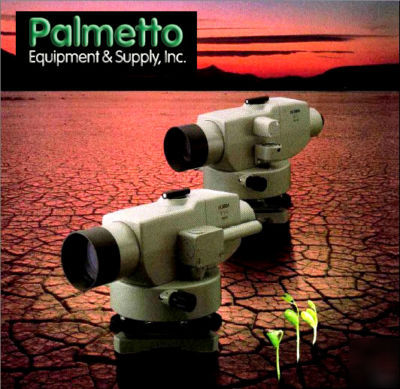

The B1 model represents state-of-the-art in leveling technology, and comes in a compact, sturdy, and easier-to-use package. Extremely precise leveling has never been simpler.
Accuracy over 1km double-run leveling is a remarkable 0.8mm, and it can be improved to 0.5mm using the optional parallel plate micrometer. Horizontal line of sight stability is assured by four suspension wires and a magnetic-damping compensator. Operation is convenient, thanks to features such as the two-speed focusing knob, distance-giving stadia lines, and even the choice of horizontal circles (on the B1C). in short, this model offers the best of Sokkia's famous technology in one neat, rugged body.
The level's reticle can be fitted with the optional parallel plate micrometer for precise measurement in increments of 0.1mm (estimation 0.01mm). The accuracy obtained over 1km double-run leveling is boosted from 0.8mm to a remarkable 0.5mm with the parallel plate micrometer.
Using a spherical-head tripod, setting up the level is fast and easy even on angled, uneven surfaces. Set the level onto the tripod head, centre the circular bubble, and away you go. It also fits flat-head tripods.
this model incorporates an endless horizontal motion drive with two knobs for fast and easy aiming, operable by right or left hand. Simply turn the instrument, then use the fine motion to aim the level at the target precisely. A two-speed focusing knob switches between coarse, and fine focusing for even faster operation. The optics are designed to be bright and easy to use.
http://surveyingequipmentspecials.googlepages.com/B1_level_map.jpg
http://surveyingequipmentspecials.googlepages.com/sokkia_B1_level_specs.jpg
Sokkia B1 Level Physical specifications
