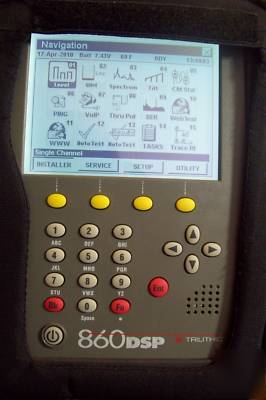

Trilithic 860 DSPi Cable Signal Meter CATV 860DSPi DSP
1 SIGNAL METER ,WITH CHARGER,CARRYING CASE AND 6 FEET COAXIAL CABLE,100% WORKING EXCELLENT PERFORMANCE ON THE FIELD ,MAC ADRESS AND SERIAL NUMBER AVAILABLE UPON REQUEST.
SOME TECHNICAL SPECIFICATIONS.
Evolutionary Platform Lets Techs Change with the Times, Without Changing Meters
Fast and powerful, Trilithic's popular 860 DSP offers a versatile solution for your changing business needs. Thanks to DSP technology, you can typically update or upgrade it with a simple internet download. Anytime, anywhere.
So your techs can change with the times - or with new services - without changing meters. That can cange your bottom line. In fact, no other meter gives you lower lifetime costs. With the 860 DSP, you're ready for tomorrow, today.
For more information on the history of advances in the 860 DSP, see our Product Timeline.
C/N, 2nd and 3rd Order Intermodulation, Forward Gain and Tilt, Reverse Gain and Tilt (with Option), Hum and Low Frequency Noise
5 to 1,000 MHz Frequency Range
Scans all Forward Channels, a Select Group or tunes by Frequency
Measures MER/BER, displays Constellations (with option)
High Resolution Spectrum Analyzer
Displays spectrum up to full span, and (with option) at resolutions from 10kHz to 3 MHz
Emulates Trilithic's Guardian 9580 SSR Return Path Field Unit (with option) and RSVP Installer's Reverse Tester (with option)
The 860 DSP is fully compatible with Trilithic 9580 SST and 9581 SST Reverse Path Analyzers and can emulate the functions of the Guardian 9580 SSR Reverse Field Unit and Guardian RSVP Installer's Reverse Tester.
Return Transmitter Board (Requires SR-1, VP-1 or FDR Option)
When installed in and 860 DSP this option enables signal generation for the Return Sweep Recevier Option (SR-1), Return Tester RSVP Option (VP-1), and/or Frequency Domain Reflectometer Option (FDR). REQUIRES POWER PACK OPTION. For aftermarket purchases of this option, you must also purchase the SR-1, VP-1, and/or FDR Option.
Return Sweep Receiver Option (SR-1)
When installed in an 860 DSP, this option performs functions of the Trilithic Guardian 9580 SSR Reverse Test Field Unit. Compatible with the Guardian and Guardian II System. REQUIRES RETURN TRANSMITTER BOARD OPTION. This option or the Return Tester RSVP Option (VP-1) is required to enable the Real-Time Transport Protocol Reflector Option (RTP-1).
Return Tester RSVP Option (VP-1)
When installed in an 860 DSP, this option performs functions of the RSVP . Test capabilities and displays allow RSVP type testing of 8 frequencies at one time. Compatible with the Guardian and Guardian II System. REQUIRES RETURN TRANSMITTER BOARD OPTION. This option or the Return Sweep Receiver Option (SR-1) is required to enable the Real-Time Transport Protocol Reflector Option (RTP-1).
Spectrum Analyzer Option (SA-1)
When installed in an 860 DSP, this option harnesses the power of the 860 DSP to provide all of the typical and high performance spectrum analyzer capabilities without the complexity, cost and weight of analog alternatives.
With this option the 860 DSP analyzes QPSK and all common QAM formats from 4 QAM to 256 QAM, including deep interleave on 256 QAM, presenting constellation diagrams, MER, EVM and calculated BER, both pre and post FEC.
When installed in an 860 DSP, this option provides compatibility with the 8300 FST Forward SpeedSweep Transmitter.
Vestigial Side Band Modulation Option (VSB)
When installed in an 860 DSP, this option allows the operator to connect an off air antenna to the 860 DSP input port and read Level, MER, BER, and view Constellation and Equalizer Tap Information on 8 VSB and 16 VSB channels. REQUIRES FIRMWARE VERSION V7.4.1.1 or HIGHER. Aftermarket purchases require the Enhanced Digital Video Retrofit (IL-2). REQUIRES POWER PACK OPTION.
Vertical Interval Test Signals Option (VITS)
When installed in an 860 DSP, this option allows headend technicians to view Vertical Interval Test Signals (VITS), which are inserted during the vertical synchronization interval of analog video, and specify lines for testing. The option enables the technician to measure differential phase, differential gain, and chroma delay.
Real-Time Transport Protocol Reflector Option (RTP-1)
When installed in an 860 DSP, this option extends the measurement and troubleshooting range of field technicians by offering a simple round-trip VoIP quality test from any RF test point. The option works through communication with the Tektronix DirectQuality active monitoring system, enabling tests to verify RTP communication from the test point to probes placed strategically throughout the cable network. The RTP Reflector Option enables round-trip stream analysis for packet loss, jitter, delay and other IP impairments. R-factor, MOS and other industry-standard service quality metrics are included based on a Tektronix E-model implementation.This option works only with a fully implemented Tektronix DirectQuality System. REQUIRES FIRMWARE VERSION V8.1.11.1 or HIGHER.
Frequency Domain Reflectometer Option (FDR)
When installed in an 860 DSP, the Frequency Domain Reflectometer Option (FDR) provides a simple, convenient and accurate tool for determining the distance to cable faults. The option works by sending a sweep into the cable and analyzing the complex reflected wave to determine the distance to various sources of reflection (opens, shorts, splitters, etc.). The reflecting events are indicated on a distance versus amplitude display, and markers are used to identify the distance to the source of the reflection, and the return loss at that point. REQUIRES RETURN TRANSMITTER BOARD OPTION.
Hardware change in factory for remanufactured RF PCB board extended to 1 GHz. Call factory for RMA (***)-344-2412.
Enhanced Digital Video Retrofit (IL-2)
Adds 10/100 Ethernet connectivity to the 860 DSP, allowing connection to Internet through an external cable modem. Enables High Speed Throughput Test feature with the latest 860 DSP Firmware. Requires a hardware change at factory, call for RMA (***)-344-2412.
Install a DOCSIS 2.0 Modem into the 860 DSP. Requires hardware change at the factory. Call factory for RMA (***)-344-2412.
Bi-directional test probe used with the Return Sweep Receiver Option (SR-1) for the 860 DSP & DSPi or the 9580 SSR to isolate ingress sources.
Return Measurement Lowpass Filter (TLB-60)
Return measurement lowpass filter.
Carrying Case for 860 DSPi, Seeker, Seeker Lite or Seeker Lite (CC-23)
Carrying case designed to house an 860 DSPi, Seeker, Seeker Lite or Seeker Lite , power adapter/charger, test cables, probes and more. Includes Precision RF Coaxial Test Cable (I/O-15).
860 DSP & DSPi Vehicle Power Adaptor (CL-5)
Vehicle cigarette adaptor for the 860 DSP & 860 DSPi.
Euro AC power cable for Trilithic products. This is a Euro standard 2.5 Meter power cable with a Continental Europe 2-prong plug Male (IEC 884/CEE 7/VII) to 3-pin shroud plug Female (IEC 320C13).
Can be used to replace the Euro power cable that is included with the following products:
860 DSPh with Euro Power Supply
860 DSPi with Euro DOCSIS 2.0 Modem
860 DSPi with Euro DOCSIS 3.0 Modem
860 DSPr with Euro Power Supply
Can be used as an accessory for the following products:
PC Data Cable for 860 DSP & DSPi (I/O-14)
Data cable for the 860 DSP & DSPi. This data cable is used to connect to a PC using the WorkBench software.
Precision RF Coaxial Test Cable (I/O-15)
Precision RF coaxial test cable for connecting test equipment. Light, very flexible with a tight bend radius. 0.16 dia, 4 Long, ~ 0.7 db loss at 1 GHz. Lab-quality Male F-connector on both ends, Includes one (1) F Style Push On Adaptor.
Lab-quality adaptor for precision measurements. Female F-connector to Male push on F-connector. Loss ~ 0.1 dB at 1 GHz.
Replacement input F-connectors for the 860 DSP & 860 DSPi. Minimum quantity of purchase is 25 pieces.
For use with 860 DSP & 860 DSPi.

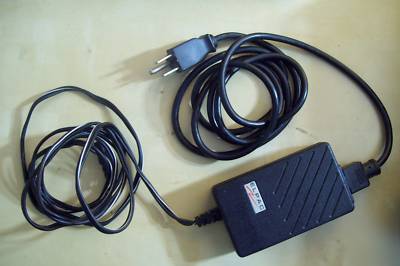

AC to DC Power Adaptor with US Cable
AC to DC power adaptor & battery charger for Trilithic Products. This is a standard AC to DC power supply (90 - 220 VAC) with a U.S. standard 6 Foot power cable with a 3-prong grounded plug Male (NEMA 5-15P) to 3-pin shroud plug Female (IEC 320C13).
Can be used to replace the AC to DC adaptor & battery charger that is included with the following products:
860 DSPi with US or Euro DOCSIS 2.0 Modem
860 DSPi with US or Euro DOCSIS 3.0 Modem
AC power cable for Trilithic products. This is a U.S. standard 6 Foot power cable with a 3-prong grounded plug Male (NEMA 5-15P) to 3-pin shroud plug Female (IEC 320C13).
Can be used to replace the US power cable that is included with the following products:
Free Configuration Starter Software for the 860 DSP, 860 DSPi, 860 DSPh, and 860 DSPr analyzers and 8300 FST Forward SpeedSweep Transmitter. This software is used to facilitate custom configurations including Channel Plans, Auto Tests, and Firmware Updates via the meter s Ethernet port. Requires Windows 2000 or higher operating system.
This WorkBench Lite software also includes a 30-day evaluation period for the advanced datalog analysis features of WorkBench. After 30 days elapse without a registration code being entered, the advanced datalog analysis feature will be de-activated. To unlock the advanced datalog analysis features aftter the 30-day evaluation period, you will need to obtain a license for the premium version of the WorkBench software. A license can be purchased and activated by phone, contact Trilithic Sales for more information.
