New carrier zone controller 33ZCVAVTRM

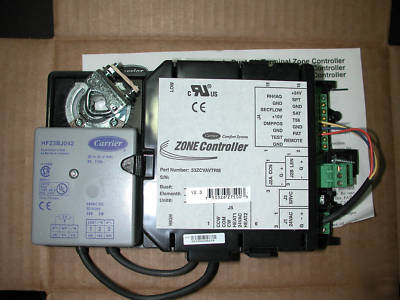

NEW Carrier Zone Controller 33ZCVAVTRM NIB
Item is new mint in the box industrial surplus.
General info from the internet-Please do your own research.
* Provides pressure independent (VAV) control
* Uses Proportional Integral Derivative (PID) control
* Mounts directly onto VAV box damper shaft
* For terminals up to 9000 cfm or 3.4 sq ft inlet (primary air)
* Auxiliary heating control of modulating (floating) hot water, single-position hot water, single or two-stage electric, or zone two-stage electric, or zone perimeter heat
* Quick and easy commissioning and balancing process
* Automatic self calibration of airflow transducer
* Capable of stand-alone operation, with supply-air temperature sensor
* Actuator preassembled to housing
* Capable of demand controlled ventilation support with field-installed IAQ sensor
* Easy access to airflow sensor pneumatic connections
* Uses Carrier Comfort Network (CCN) protocol
* Capable of high-speed 38.4 kilobaud communications network operation
* 128 controller maximum system (must be located on same CCN bus segment)
* Capable of zone humidity control (dehumidification) with field-installed humidity sensor
* Carrier Linkage System capability
* Global set point and occupancy scheduling
* Provides a remote occupancy contact input for a field-supplied occupancy sensor
* Capable of local set point adjustment with field-installed temperature sensor (with temperature offset)
* Both controller housing and actuator are UL94-5V plenum rated
The Single Duct Air Terminal Zone Controller provides dedicated HVAC controls functions for single duct terminals with modulating heat or up to 2 stages of heat. The zone controller is part of the Carrier ComfortID system.
