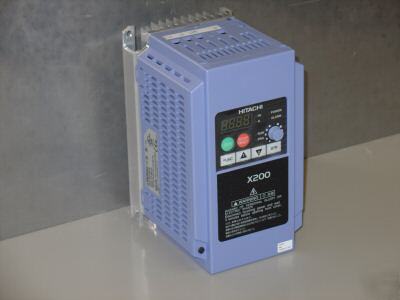

1 hp, vfd, variable frequency ac motor speed drive
230VAC Single Phase OR Three Phase
HITACHI X200 Series is a Variable Torque Drive
230VAC Constant Torque Drive: SJ200-007NFU
Setting available for constant torque, reduced torque
0.1 ~ 3000 sec. (linear/curve, accel./decel.) Second stage accel./decel. setting available
Operating frequency, time and braking force variable
Up(1) and Down(2) keys/value setting keys
0 ~ 10 VDC (input impedence 10k ohms), 4 ~ 20 mA (input impedence 250k ohms) Potentiometer: 1k to 2k ohms, variable resistor.
The frequency command is the maximum frequency at 9.8V for input voltage 0 - 10 VDC, or at 19.6 mA for input current 4 ~ 20 mA.
If this characteristic is not convenient contact Drives Warehouse.
Run/Stop (Forward/Reverse run change by command)
FW (Forward run command), RV (reverse run command, CF1~CF4 (multi-stage speed setting), JG (jogging command), 2CH (2-stage acceleration/deceleration command),
FRS (free run stop command), EXT (external trip), USP (USP function), SFT (soft lock), AT (analog current input select signal), RS (reset), PTC (thermal protection).
RUN (running signal), FA1,2 (frequency arrival signal), OL (overload advance notice signal), OD (deviation signal at PID control), AL (alarm signal)
PWM output: Select analog output frequency monitor, analog output current monitor or digital output frequency monitor
AVR function, upper/lower limiter, PID control, carrier frequency change, frequency jump, electronic thermal level adjustment, gain/bias setting function, retry function
Overcurrent, overvoltage, undervoltage, overload, extreme high/low temperature, CPU error, memory error, ground fault detection at startup, internal communication error.
20 ~ 90 % RH (no condensation)
Remote operator unit Copy unit Dynamic braking unit Braking resistor AC reactor DC reactor Noise filter
