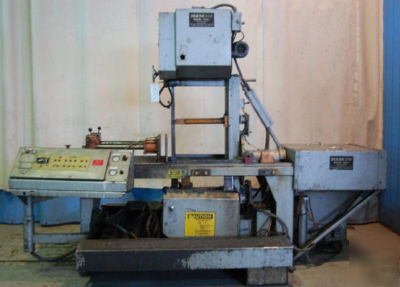

18" x 20" hem auto tilting-head vertical band saw 25555
18" x 20" HEM AUTOMATIC TILTING-HEAD VERTICAL BAND SAW
New 1997, Serial No 542596, Model V100LA-2,
Swing Away Control Console (All Function Control)
Air Powered Head Clamp For Tilting Arm
Work Capacity, Nominal.................. 18" x 20"
Work Capacity, 45-Degree Blade Angle.... 18" x 12.5"
Work Height Capacity, Maximum........... 20"
Throat Depth, Rated..................... 18"
Head Tilt, Left......................... 45-DEGREES
Head Tilt, Right........................ 45-DEGREES
Blade Width............................. 1.25"
Blade Lenth............................. 14.3'
Blade Thickness......................... .042"
Blade Speeds, Infinitely Variable....... 60 to 400 SFPM
Motor, Horsepower....................... 5 HP
Electrical System....................... 220-440/3/60
Overall Dimensions, W x D............... 8'8" x 11'
Overall Height.......................... 7'2"
PRICE: F.O.B. OUR WAREHOUSE............ $17,500.00
