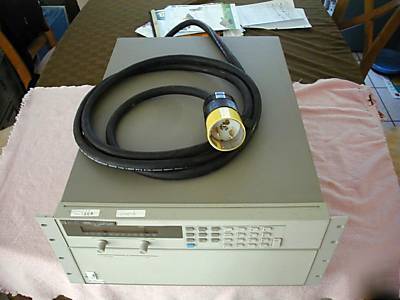

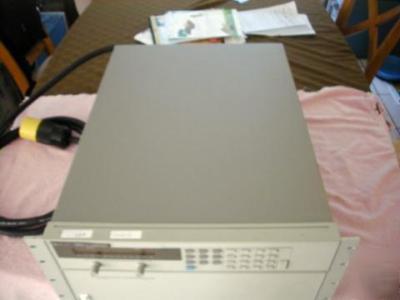

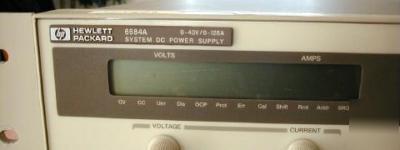

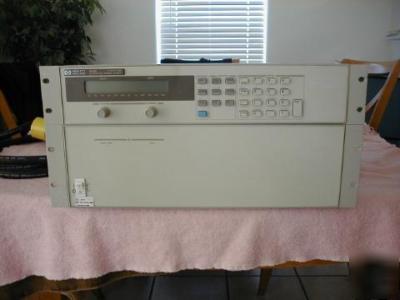

Hp - agilent 6684A 0-60V/0-80A system dc power supply

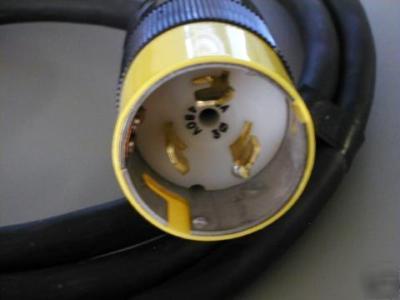

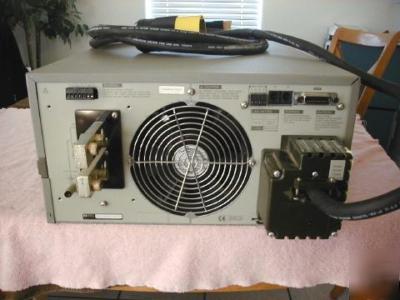

NOTE: THIS POWER SUPPLY HAS A SPECAIL CONNECTION THAT NEEDS 220 VOLTS, 3 PHASE. THE CONNECTOR HAS 4 CONNECTIONS WHICH ALL 4 CONNECTION HAVE TO BE HOOKED UP, IN ORDER FOR IT TO WORK. IT WILL NOT POWER UP WITH REGULAR 220 VOLTS OR CONNECTOR!
The Agilent 6684A model is part of the 6680 series of power supplies have been designed to provide performance needed for critical applications. These switching power supplies can be used in many noise sensitive applications where linear supplies were once the only solution. The low noise has been achieved while still preserving the efficiency and compactness of a switching supply. The 6680 series also provides a variety of protection features for both the load and the power supply.
SPECS: *** Auto-parallel up to three units *** Outputs can be connected in series *** Programmable over-voltage and over-current protection *** Over-temperature protection *** Discrete Fault Indicator/Remote Inhibit (DFI/RI) *** Self-test occurs at power-on from an GPIB command *** User definable power-on state *** VXI plug&play drivers. *** 220 Volts, 3 phase input. *** 0-60 Volts/0-80 AMPS output (marked). *** 5000 WATTS.
Here is a date sheet: http:// /vt/assets/pdfs/HP_668SERIES.PDF
