Vintage 1950S military an radio receiver r-361/gr gardo

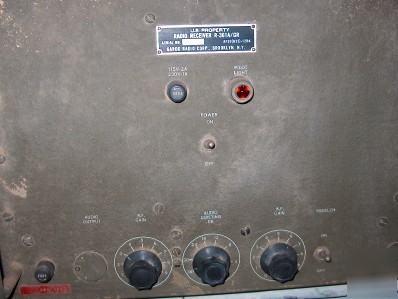

Vintage 1950s Military AN Radio Receiver R-361/GR Gardo
VINTAGE MILITARY RADIO RECEIVER AN SINGLE CHANNEL CRYSTAL CONTROL IF 40.6 AND 6 MHZ
Receiver, radio: AN Radio Receiver R-361/GR & ( ); AM type signal; for com tion, crystal controlled; u/w various UHF radio sets; USAF Exhibit ENG-245. Functionaldescription: Crystal-controlled, amplitude modulated, superheterodyne radio receiver
munications; freq range 225 to 400 me, for nominal 100 kc channel spacing; input 115 v
p/m lOv, 230v p/m 20v, 50-60 eye, single ph, 150 w; rack mt; dimen 19" Ig X 15" wd X
1-1/2" h approx; 20 tube superheterodyne ckt; special noise limiter, squelch opera
designed to receive signals, emanating from equipment in aircraft, over line-of-sight
paths in the frequency range of 225 to 400 me with an output level sufficient to operate
a loudspeaker such as used in control towers.
