1 sprague vitamin q capacitor 0.1UF 7500VDC 1962 60 usa

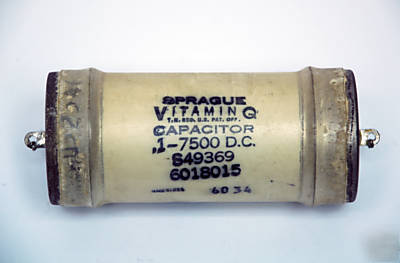

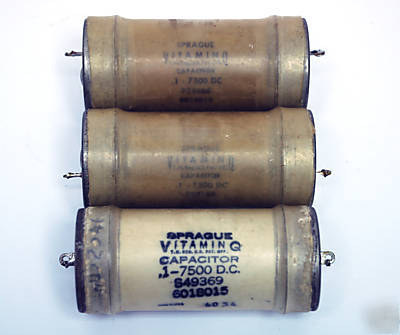

Sprague Vitamin Q capacitor 0.1uF 7500VDC
Date code : 6034, 6234, 6234 (1960, 1962)
Body dimension : 89.0x40.5mm LxD
Test them on HP4277a and reading as below :
Capacitor 1 (6034) : 0.105uF, D=0.032, Z=-88.2 @10khz
Capacitor 2 (6234) : 0.099uF, D=0.018, Z=-88.87 @10khz
Capacitor 3 (6234) : 0.098uF, D=0.019, Z=-88.86 @10khz
All are in very good condition.
