Hp agilent 8349B/001 18.6-20 ghz microwave amplifier

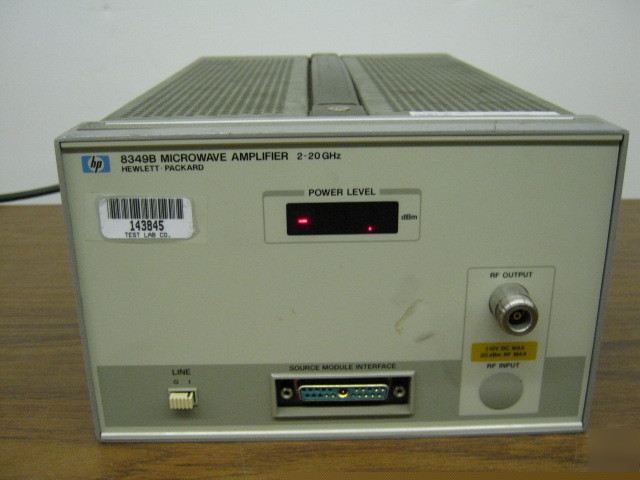

HP Agilent 8349B/001 18.6-20 GHz Microwave Amplifier
The 8349B Microwave Amplifier is designed for maximum reliability and configured for the greatest convenience in interfacing microwave sources such as sweepers and signal generators.
* Provides 100 mW (+20 dBm) of unleveled power output from 2 to 18.6GHz, 50 mW (+17 dBm) from 18.6 to 20.0GHz
* Offers one of the broadest operating bandwidths available from a solid-state power amplifier
* Performance is achieved by using a GaAs FET design of multiple stages
* Stages provide 15 dB of gain up to 18.6GHz while maintaining a very low noise figure of 13 Db
* Power flatness is 1.25 dB
* Harmonics at +20 dBm output is -30 dBm from 11 to 20GHz typical
* 1 dB compression point is +21 dB and maximum input is +27 dBm
* Input and output impedance's are 50-ohms with an input SWR of less than 2.8
* Option 001 = Rear Panel RF Input
