Hv filter caps kenwood hf ts-520 ts-520S ts-820 ts-820S
Replace the old HV electrolytic filter capacitors in your
Kenwood TS-520, TS-520S, TS-530, TS-530S, TS-820, TS-820S, TS-830
and the Yaesu FT-101, FT-102, FT-901 and FT-902 radios !
These caps will work with the entire TS-5xx TS-8xx series and with
the Yaesu FT-101, FT-102, FT-901 and FT-902 models.
Please check your schematics before ordering.
Keep the high voltage section working properly by using these new
Panasonic electrolytic capacitors that are 50uf larger value then the originals.
This means less stress for the high voltage section of the radio.
One Pair of NEW Panasonic 150uf 500wvdc electrolytic capacitors,
35mm diameter x 25mm tall, will fit existing clamps perfectly.
These are Made in the USA by Panasonic in a Tennessee factory.
NEW bypass caps and 1W bleeder resistors are included at no extra charge.

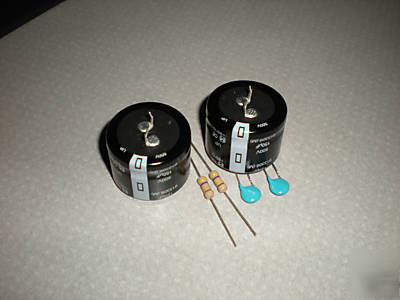

Items in the photo are actual parts you will receive, not a stock photo.
not in a cheap envelope that will get crushed by the sorting machines.
If your HV meter reads half of the normal reading, chances are the
HV filter caps need to be replaced.
Why are the capacitors smaller in physical size then the ones in my old radio ?
30+ years of technology and improvements make for smaller parts.
The diameter is the same as the original capacitors, only shorter in height !
1 watt bleeder resistors replace the 1/2 watt original resistors.
Bypass caps are also smaller but same value as the original parts.
Here is a great group for the Kenwood 5xx and 8xx radios
