New 1.5†ashton air diaphragm pump (aluminium/buna-n)

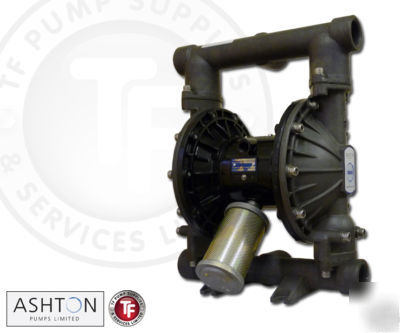

This is a Brand New 1.5 Ashton air driven double diaphragm pump.
Body Construction in ALUMINIUM c/w BUNA-NITRILE Diaphragms, Valve Balls & Seals.
Maximum Free Flow - Water: 379 lpm (100 US Gpm)
Inlet/Outlet Port Size/Standard: 1 1/2 Inch NPT/BSP Female
Maximum Air Consumption: 3.5 m3/min (125 scfm)
Maximum Partical Size: 4.8 mm (3/16 Inch)
Approximate Dissplacement/Stroke: 1.96 Litres (0.5 US Gallons)
Typical Sound Level at 4.9 Bar (70 Psi): 77 dBa
Weight - ALUMINIUM Construction: 15.2 Kg (33.5 lbs)
Weight - 304 & 316 St.St Construction: 39 Kg (86.5 lbs)
