New * sealed* allen bradley ab 1756-L63 /b 1756L63 01/10
Rockwell Automation > PLC & HMI > Controllers > ControlLogix > 1756-L63/B
Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor With 8Mbyte Memory, Series B
Controller tasks: 32 tasks, 100 programs/task, Event tasks: all event triggers; Communication Ports: One RS-232 serial port; Available User Memory: 8196 KB; I/O Memory: 478 KB; Optional Nonvolatile Memory: 64MB CompactFlash (1784-CF64), 128MB (1784-CF128); Digital I/O, max: 128,000; Analog I/O, max: 4,000; Total I/O, max: 128,000; Current draw: 1200mA @ 5V DC, 14 mA @ 24V DC; Power dissipation: 3.5 W.
Allen-Bradley 1756-L63 Logix5563 Controller can be inserted into any slot of a chassis. Multiple controllers can be installed in the same chassis to communicate with each other across the backplane but operate independently. 1756-L63 Controllers can communicate across RS-232-C (DF1/DH-485 protocol), DeviceNet, DH+, ControlNet, and EtherNet/IP networks. To provide communication for a 1756L63 processor, an appropriate communication interface module must be installed in the chassis.

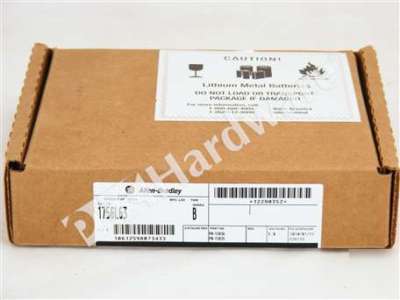

One New Factory Sealed Allen Bradley 1756-L63 Series B, ControlLogix Logix5563 Processor With 8Mbyte Memory.
The unit is Series B, S/W F/W Rev. 1.9, Pkg Date 01/15/2010.
