Nitek CX452 cage utp card video data power twisted
Manufacturer: Nitek Model/Part #: CX452CONDITION
Nitek CX452 Cage UTP Card Video Data Power Twisted
Modular crossover interface card cage for the UTPLinks video, data & power over twisted pair transmission system.

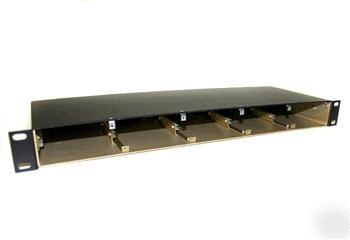

The CX452 is a 1 RU card cage designed to hold up to five modular crossover cards for the UTPLinks system, mounted horizontally. The card cage combined with plug-in crossover cards comprises a video crossover and power insertion unit for the UTPLinks system and depending upon the type of cards used, can also include RS422 distribution and/or video transceiver capability. Four models of four-channel crossover cards are available. The cards can be used in any combination, allowing the rack system to be customized to the specific application. (Modular cards are sold separately).
The CX452, configured with plug-in cards, is designed to work with TIA/EIA standards-based structured cabling networks. The crossover card cage provides a 50 pin Telco at the rear of the unit for easy interfacing with either a copper backbone cable or Nitek video receiver equipment. Separate 24 VAC power inputs are provided for each card at the rear of the unit. The CX452 requires the use of a Nitek PS105 or PS110 power supply.
