Ultrazone ewc NCM300 control panel for heat pumps

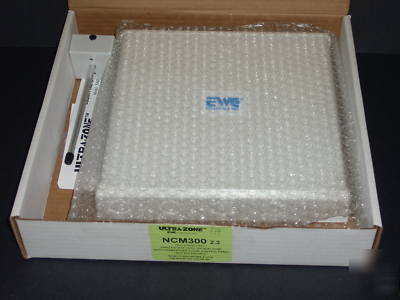

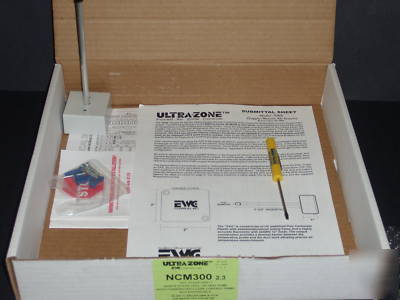

YOU ARE VIEWING NE WIN THE ORIGINAL BOX OF ULTRAZONE EWC NCM300.
EWC CONTROL PANEL FORCED AIR ZONE

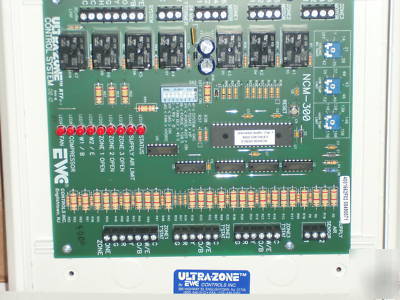

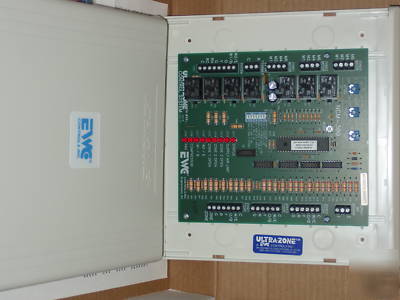

The NCM 300 panel provides intelligent control of Heat Pump or Conventional forced air zoning systems at a maximum of three zones using motorized dampers and practically any off-the-shelf heat/cool thermostat. With features like automatic changeover, opposite system service, short cycle timers and supply air sensing capability, the NCM 300 provides a high level of performance in a non-expandable zone control panel.
Transformer 40-60VA MAX. NEC Class 2.
18 gauge Solid copper wire. Do not
use Stranded or Shielded Cable.
Gas/Electric/Hydro Up to 2 Stages Heating and 1 Stage Cooling.
Heat Pump Conventional Up to 2 Stages Heating and 1 Stage Cooling.
Any single stage Heat/Cool Thermostat or 2 Stage Heat, 1 Stage cool Heat Pump Thermostat.
EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.
Model SAS Supply air sensor (
Staging via Adjustable On-board Timer (7 to 42 Minutes).
*Enhanced Hydro-Air capabilities, can delay fan activation on Heating demand.
*Supply Air Temperature Monitoring to help protect HVAC equipment.
*Adjustable Purge time (90 or 120 seconds).
*On Board LED s indicate system operation.
