honeywell solid state ignitor spark generator

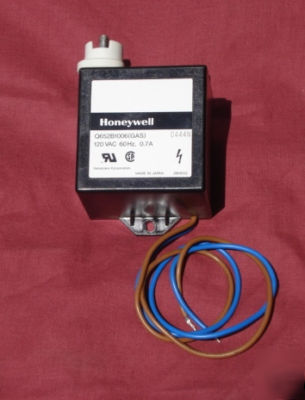

You are looking at a HONEYWELL Q652B 1006 Solid State Ignitor Spark Generator
This item is a new open box item offered at a discount price.
The Q652B Solid State Ignitor Spark Generator is a light-weight solid state spark generator (ignitor) for use on commercial and industrial gas burners.
* Ignites interrupted gas pilots with ignition electrodes spacings between 0.029" to 0.125" (0.7 to 3.2 mm)
* Q652B1006 is used for gas applications
* Q652B1006 has 14.0 kV output peak voltage for reliable light-off
* Recommended for interrupted ignition applications only
* Mounts in the same space used by conventional ignition transformer
* Withstands 90% relative humidity at 104 F (40 C)
* Weighs 1lb (0.42 kilogram) versus up to 8-1/2lbs (3.9 kilograms) for standard transformers
* Meets Underwriters Laboratories Inc. (UL) requirements for radio frequency interference (RFI)
Model: Q652B1006 Single high voltage electrode for gas,with ''Rajah'' and screw connectors.
Voltage and Frequency: 120 Vac (+10%, -15%), 60 Hz
Output peak voltage at 21 kHz: 14.0 kV
Secondary open circuit voltage: 10 kV equivalent RMS
Power Consumption: 40 Watts maximum
Spark Gap: 0.029" to 0.125" (0.7 to 3.2 mm)
Firing Rate: 20,000 sparks per second
