43" swg 236" cc poreba pna 110/6M cnc lathe, fanuc cntr
43" Swg 236" cc Poreba PNA 110/6M CNC LATHE, Fanuc Cntr
43" Swing 236" Centers Poreba PNA 110/6M CNC LATHE, Fanuc Cntrl,Baruffaldi Turret,3&4 Jaw,(2)Steady,

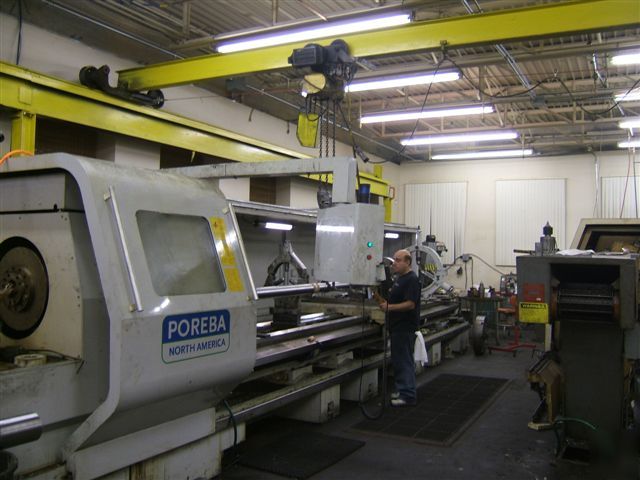

43" X 236.22" POREBA CNC LATHE
FANUC 0ITC CNC CONTROL WITH MANUAL GUIDE
SWING OVER BED ....................... 43"
SWING OVER CROSS SLIDE ............... 26"
SWING IN GAP ......................... 53"
MAXIMUM TURNING LENGTH ............... 236.22"
BED WIDTH ............................ 22.5"
WEIGHT BETWEEN CENTERS ............... 13,200 LBS
WEIGHT CAPACITY WITH 1-STEADY REST ... 16,720 LBS
WEIGHT CAPACITY WITH 2-STEADY RESTS .. 20,220 LBS
WEIGHT CAPACITY ON CHUCK ............. 1,200 LBS.
SPINDLE SPEEDS, 2-RANGES ............. 15-1,480 RPM
SPINDLE HOLE DIAMETER ................ 4.17"
SPINDLE NOSE MOUNT ................... A2-11
SPINDLE MOTOR ........................ 30/40 HP
QUILL DIAMETER ....................... 4.92"
QUILL STROKE ......................... 9.1"
QUILL TAPER .......................... #6 MT
OVERALL DIMENSIONS ................... 350" X 90" X 90"
MACHINE WEIGHT ....................... 33,000 LBS.
FANUC 0ITC CNC CONTROL W/MANUAL GUIDE & 10.4" MONITOR
BARUFFALDI MODEL:TB-200 VDI50/8T 8 POS. FRONT MOUNTED TURRET
1.9" TO 9.8" CAPACITY ROLLER STEADY REST
9.84" TO 26.37" CAPACITY ROLLER STEADY REST
2-STEP VARIABLE SPEED WITH AUTO SPINDLE STEP CHANGE
A2-11 SPINDLE NOSE FRONT & REAR
OPERATION MANUALS, ELECTRIC SCHEMATICS, PROGRAMMING MANUAL
30 HP/40 HP SPINDLE DRIVE MOTOR 220/3/60 CYCLE
INSPECT UNDER POWER IN EAST COAST FACILITY
