(9) assorted audio op-amp set (see list) ham / engineer
Handy AUDIO Assortment for the DIY'er.
Click on any part number to view the datasheet.
Each KIT contains (9) different audio amplifier ICs.
EXAMPLE: If enter a quantity of (2) and win, you get (2) sets, (18) pieces total.
Designed for use in line powered speakerphones, this audio amplifier is great for 3 Volt battery operated projects.
* Ideal for Battery Operation
Designed for use in low voltage applications. The default gain is 20 but can easily be adjusted from 20 to 200. The quiescent power drain is only 24 mW @ 6 V, making it ideal for battery operation.
* Replaces 709C, 748, LM201, etc.
* EXTREME 10 Ohm Input Z (Input Impedance)
This Op-Amp operates over a wide temperature range making it suitable for outdoor applications.
This dual, low noise Op-Amp has internal switches on both the input and output used to remotely program the gain or select inputs, etc. Examples below.
The NE532 is superior to, and a direct replacement for, the more common LM358. It has much better stability and overall performance is improved, especially at V+ of less than 6 V.

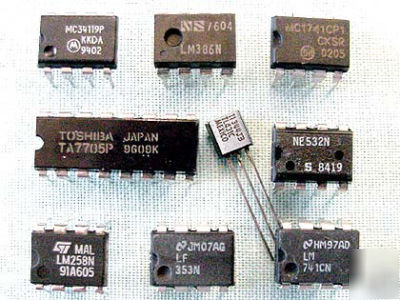

MC34119 Power Amp, DIP8 (273K PDF)
LM386 Power Amp, DIP8 (253K PDF)
TL431 Power Amp / Regulator, TO-92 (572K PDF)
LM741 Single Op-Amp, DIP8 (206K PDF)
MC1741 Single Op-Amp, DIP8 (85K PDF)
LF353 Dual Hi-Z JFET Op-Amp, DIP8 (598K PDF)
LM258 Dual Hi-Temp Op-Amp, DIP8 (1010K PDF)
TA7705 Dual Op-Amp, DIP16 (433K PDF)
NE532 Dual Op-Amp, DIP8 (129K PDF)
etronic e-tronic hamtronic qba tech
14 day Non-DOA, Good-on-Arrival Guarantee
Untested, but NO JUNK or suspect parts
PCB parts are thru-hole, NO SMD/SMT
Manufacturers may vary from picture
