Hp 7046A x-yy pen recorder

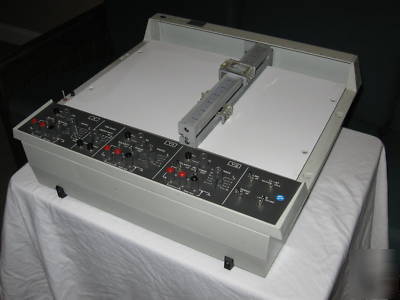

For sale is a USED HP 7046A X-Y Pen Recorder.
* X-YY Recorder - 2-Pen, High Speed
* Type of Input: front and rear input. Floating, guarded. Polarity reversal switch on front panel
* Input Ranges: 0.5mV/in. to 10V/in. (metric available in 0.25mV/cm to 5V/cm). Continuous vernier between ranges
* Input Resistance: 1 megohm constant on all ranges
* Time Base: Optional: 6 speeds; 0.25 to 50 sec/cm (English is 0.5 to 100 sec/in.) switchable to X axis
* Writing Area: 25 x 38 cm (10 x 15")
This unit came from a working laboratory/test environment and is in great cosmetic shape. I have powered the unit up and appears to function as expected. I am not familiar with the functioning of the unit but when I switch the "Line On" switch the print bar travels the length of the recorder. The "Pen Lift" switch works when switched on and off. If there are specific tests or tasks you would like me to perform let me know and I will do my best.
