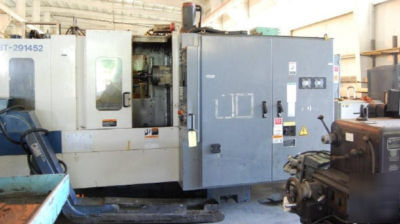

Mori-seiki 3-axis cnc horiz machining center #25227
#SH400 MORI-SEIKI 3-AXIS CNC HORIZONTAL
New 1997, Serial No 331, Model SH400,
Mori-Seiki/Fanuc #MSC518MC CNC Control
(2) 15.75" x 15.75" 1-Degree Pallet-Shuttle
Speedaire Refrigerated Air Dryer
Pallet Load Capacity, APC 7 SEC........ 1100 LBS
X-Axis Column Longitudinal Travel...... 22.05"
Spindle-Center to Table-Top, Minimum... 1.97"
Spindle-Center to Table-Top, Maximum... 22.05"
Workpiece Height, Maximum.............. 25.59"
Workpiece Swing Diameter, Maximum...... 24.01"
Tool Diameter, Maximum................. 4.92"
Tool Length, Maximum................... 11.81"
Tool Weight, Maximum................... 17.6 LBS
Spindle Speeds, Range.................. to 12000 RPM
Feedrate Range......................... .039 to 944.88 IPM
Rapid Traverse Rate.................... 1259 IPM
Spindle Motor, 30-Minute Rating........ 30 HP
Floor Space Required, L x W............ 9'5" x 12'10"
Weight, Approximately.................. 19140 LBS
