New amprobe DM73C red and black pen probe style

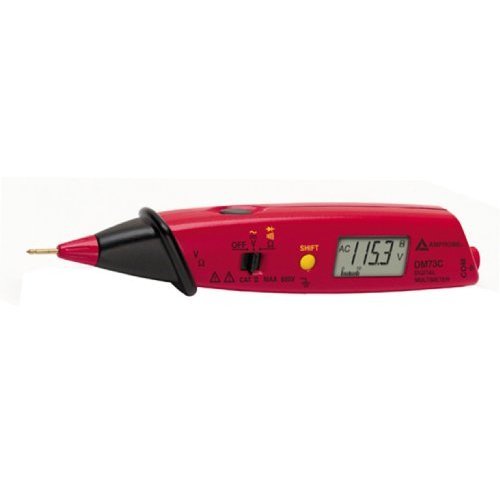

Amprobe DM73C Red and Black Pen Probe Style Digital Multimeter
Features 600 Vac and 600 Vdc ranges Improved dc basic accuracy 0.5% Resistance to 34 M Continuity beeper Includes alligator clip, ground test lead, spare probe tip and installed batteries 3400-count digital display plus analog bargraph Auto power off UL 3111-1 listed 3-3/4-digit LCD Display Cat III 300 V, Cat II 600 V rates UL, CE listed One Year Warranty Specifications (at 23 C 5 C, non-condensing) DC Voltage Ranges 340 mV, 3.4, 34, 340 V, 600 V Accuracy (0.5 % rdg 2 dgt) Resolution 0.1 mV in 3.4 V range Input Impedance 340 mV range: >100 M Other ranges: 10 M AC Voltage (50-500 Hz) Ranges 3.4 V, 34, 340, 600 V Accuracy (1.5 % rdg 8 dgt) Resolution 0.1 mV in 3.4 V range Input Impedance 10 M Resistance Ranges 340 , 3.4, 34, 340 k , 3.4, 34 M Accuracy 340 - 340 k : (1.0 % rdg 4 dgt) 3.4 M : (1.5 % rdg 4 dgt) 34 M : (3.0 % rdg 5 dgt) Max. Open Circuit Voltage 340 range: - 1.2 V All others: - 0.45 V Diode Test Range 3.4 V Accuracy (2.0 % rdg 3 dgt) Short Circuit Current 1.0 mA Max Open Circuit Voltage 3.0 VDC Audible Indication Continuity Test Display Response Continuity Threshold 35 Overload Protection DC and AC Voltage 600 VDC or AC rms ResistanceContinuityDiode All ranges 600VDC or VAC rms
* Improved dc basic accuracy 0.5%
* 3400-count digital display plus analog bargraph
* Cat III 300 V, Cat II 600 V
* SKU: d7cdbdad5b4f543a6312f39bcf40d758
