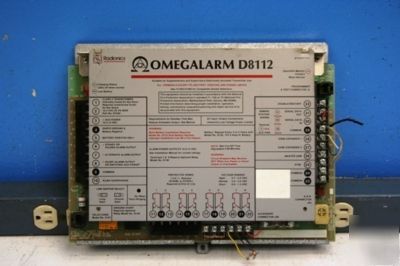

Radionics D8112 omegaalarm communicator transmitter
Radionics D8112 OmegaAlarm Alarm Communicator Transmitter
Discontinued - No Direct Replacement
* 8 Zone, (G2 has 134 points), 1 area control panel (8+8 character custom text)
* Programmable response by zone (G2 zones are 17 points each)
* Perimeter/Interior and watch mode
* Day Alarm and Fire Alarm inspector s local test mode (G2 only)
* 12VDC, 2A alarm power (steady or pulsed)
* Automatic bell test and shut off timer
* 12VDC, 1A auxiliary output
* 48 defined relay outputs, 8 controllable relay outputs (uses D8129 Relay Modules)
* 14 users (G2 model has 70 users) with 5 or 6 digit passcodes
* 4 Softkey programmable custom functions (A, B, C, D keys)
* Serial printer using D8131 Interface (G2 and A only)
* LED command center with 3 programmable one button function keys
* Event routing (up to 2 phone numbers) with alternate reporting via dual phone lines (monitored)
* Open/Close local event logging within window (G2 and A only)
* Selectable Open/Close reporting from certain passcodes
* Non-volatile event log (up to 400 events)
* Automatic test and/or status reports
* Automatic operation using time/date scheduled events (Skeds) including: arm, disarm, bypass and unbypass points, set and reset relays, open/close report suppression, etc.
* Real time clock, test timer, battery charging circuit and voltage supervision, automatic reset thermal breakers, on-board warning buzzer for CPU watchdog feature, diagnostic LED s, lightning and EMI Protection, power limited external circuits, and power supervision
