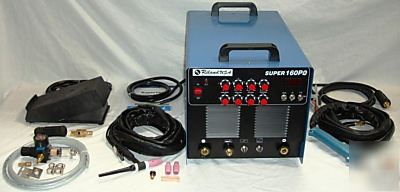

SUPER160P tig welder pulse 160A, mma, 40A plasma cutter
Authorized Riland Dealers sell Real Riland Machines with a Real Warranty. Beware of Copies!!!
FREE BOOK: Tig & Plasma Cutting Guide - with purchase of this Machine. See Below for details...
Call if you have any questions
Plasma Cutting in Action (above)
The Riland Multipurpose series of Welders is a revolutionary new approach to Welding technology. Riland introduced a more efficient way to manufacture top quality machines while keeping the cost of operation and repairs lower. This was accomplished using several new approaches to the mainstream technology. One of these methods is our proprietary plug & play main circuit boards which allows ease of repair, reducing the downtime to only hours rather than days, while also reducing repair costs averaging less than $75! The CT & Super Series uses special safety redundant circuitry with built in auto-protection and self adjusting circuitry to keep your machine running in a safe threshold. This helps protect your machine from over-voltage, power spikes, burn-outs and shorting. The Super 160P is the best multipurpose machine available on the market with a generous 160amps of Tig amperage in AC and DC with pulse mode, high frequency and a current variable foot pedal, stick option, mig spoolgun option and 40amp plasma cutter built in.
w/pulse, square wave, AC/DC & foot pedal
220-240VAC Input / Portable System
This is a very compact ALL-IN-ONE Inverter Plasma Cutter / Tig Welder / Arc Welder capable of outperforming all competition...ie: HTP, Miller, Hobart, Thermal Dynamics, Blue Point, Lincoln & Hypertherm. This machine boasts features found in our other top of the line machines such as a 160amp Tig / MMA Welder with ACDC Pulse mode with foot pedal, LCD amperage display, 40amp plasma cutter and a generous panel for fine tuning adjustments.
This machine boasts 160amps of AC & DC welding in Tig or Stick mode, 40amps of Plasma Cutting power and Tig Pulse mode with a foot pedal. Plus it will operate on 220VAC or 240VAC or anything in between at 50-60hz. This is truly a go anywhere, do anything welding machine with all the best features of the most expensive machines on the market and it's ALL-IN-ONE.
You can view the manual online at RilandUSA Super160PD Manual
Riland Super160PD General Specs:
Built in High Speed Cooling Fans w/Thermal & Overload Protection for long life.
Includes: Regulator with Pressure Gauge and Built in water separator with stop cock drain. Also includes fiber reinforced hose for air line, hose nipples and hose clamps. All mounting hardware is included.
Plasma Cutter | Tig Welder | Arc Welder
Power Draw at 40amp cut setting
Duty Cycle: 60% at 40amp cut / 100% at 31amp cut
Cutting Specs: (High Frequency Start = no contact)
3" Per minute @ 3/4" Steel (Severance Cut)
7" Per minute @ 1/2" Thick Steel
17" Per minute @ 3/8" Thick Steel
When I tried the Riland Brand I was blown away by the Performance and Power. It sliced through thick steel like butter, it was also easier to use and felt safer. Plus the electrodes are reversible! I have never seen that before. Sure saves a lot of money in the long run. Using this light weight plasma cutter is cheaper than Oxyacetytlene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut.
Torch head is low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve.
Why does our plasma cutter boast such thick cutting capacities? Because our machine is designed for Negative potential on the cutting torch and a much higher cutting voltage than miller, hobart, hypertherm or htp. We beat them everytime, in every competition!
Duty Cycle: 60% at 160amp tig / 100% at 96amp tig
Steel, Iron, Stainless, Moly, Ferrous, Aluminum, copper, brass, titanium, etc...
15-30 Tig / Cutting = 55-75psi 2.4cfm regular dry air.
Weld Thickness (single pass): Steel 1/2", Alum 3/8"
High Frequency Start / AC or DC w/ Pulse Welding
Remote Control = Foot &/or Trigger
1x #4 Shield cup, 1x #5 Shield cup, 1x #6 Shield cup, 3x collets, 1x collet body, 1x long & 1x short back cap for tight spaces.
Don't be fooled by the fact that this is a multipurpose machine. It's packed with full features like the separate machines. The Tig welds from this RilCT416 are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple. You Get all the full features you need. Weld aluminum with AC mode, Weld steel and alloys with DC or pulse mode. With foot pedal and finger switch. This is the best deal you will find for such a high quality, complete machine.
The torch trigger can be moved for a custom fit. Can be used in finger or thumb positions. Set includes Short back cap to make torch low profile for tight spaces. 16 foot long torch cord is protected by a heat resistant sleeve.
Duty Cycle: 60% at 150amp ARC / 100% at 92amp ARC
1x twist lock connector with allen and rubber handle.
A spool gun can be connected to the ARC welding output of this machine to use it for MIG welding. Simply connect the input to the MIG Spool gun to the ARC output of the Super160, connect the trigger wires to the trigger input of the Super160 and you have a 15-150amp Mig Welding Torch. We will have a kit available very soon to allow our Riland 3035 spoolgun to adapt to this machine.
Extra consumables are available from us or from several locations including most welding supply stores. Most consumable parts on this unit are OEM and easy to match with other brands. The Tig parts are found in any welding supply store. The Plasma cutter consumables are interchangeable with the Cut-40 Riland brand and can be purchased from any Riland Dealer or from us.
Warranty is handled through RilandUSA. For Details about our warranty Click Here!
Two types of power cord plugs are common in 110vac or 220vac. Any hardware store should carry the plug you need for just a few dollars.
These machines come direct from RilandUSA, Trademarked, Legitimate & Legal Riland Brand in the United States.
Feel Free to call us toll free 1-(***)-967-8235 to Verify a Seller
