Ttc/acterna 41440A T1 fractional interface adapter card

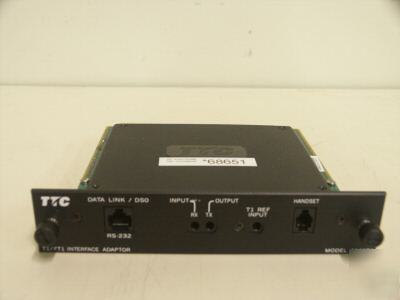

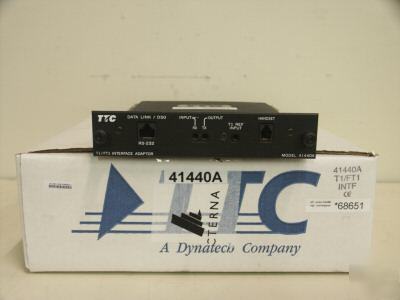

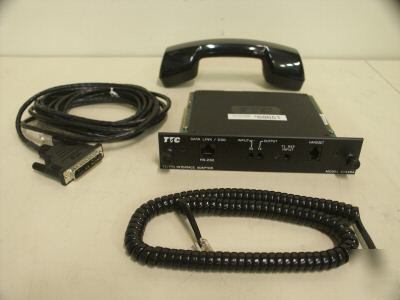

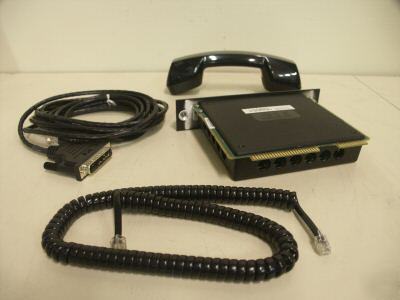

TTC/Acterna 41440A T1 Fractional Interface Adapter Card
* T1 Framed (D4, ESF, SLC-96)
* Nx64 kb/s or Nx56 kb/s (N=1 to 24)
* Contiguous or Noncontiguous Channel Selections
* User-Selectable 8-bit Idle Code.
* Fractional T1 Drop and Insert.
* Voice & Signaling Bit Transmit/Receive.
* T1.403 PRM (Fireberd 6000 Series Only)
* Input Frequency: 1544000b/s +/-500b/s minimum tolerance.
* Bridge: 1000 Ohms Minimum.
* TERM: +6 dBdsx to -35 dBdsx Cable Attenuation
* DSX-MON: -10 dBdsx to -30 dBdsx Resistive Attenuation.
* Selectable 0 dB, -7.5 dB, -15 dB with +/-1 dB Attenuation at 772 kHz.
* Meets Bell Publication CB113, CB119, CB143, and AT&T PUB 41451, AT&T PUB 62411 and AT&T PUB 62508
* Logic Errors: Single or Rate.
* Logic and BPVs: Single or Rate.
* Frame: Single or Consecurive (consecutive range:2-4)
* Error Insertion on F bits (D4 or SLC-96 Framing) or FPS bits (for ESF Framing)
* Error Insertion Rates:1E-9 to 9E-3 Fireberd 6000 Series.
