Westcor/vicor 30 megapac mpb-51006-2-el dc power supply

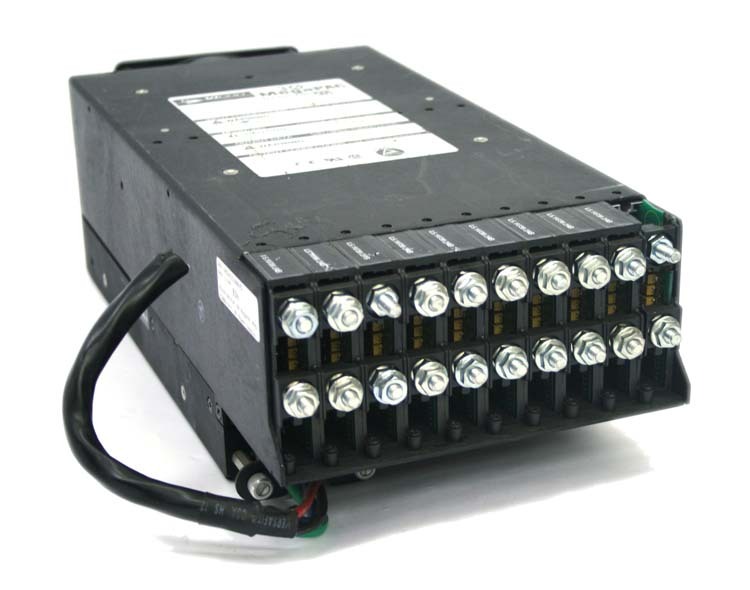

Westcor/Vicor 30 MegaPAC MPB-51006-2-EL DC Power Supply
Exterior Dimensions (L"*W"*H") : 17*7.5*5
**One of the modules is damaged. Needs replacement.
Input: 3 208/240 Vac Wye or Delta, 1 180 264 (47 500 z) or 260 352 Vdc
Power Output: 3 Phase MegaPAC: 2,000W with 3 input; 1,200W with 1 input; 1 20 outputs 4kW MegaPAC: 4,000W with 3 input; 1,500W with 1 input; 1 20 outputs
Fan cooled (the 4kW MegaPAC has 2 fans)
Full power to 45 C; half power to 65 C
Power factor correction (passive) 0.92 PF (3 input)
Conducted EMI meets EN 55022 Level A
AC Power OK and AC Power Fail status signals
Output Sequencing and General Shutdown (Consult Applications Engineering for automatic sequencing circuitry.)
Autosense (Refer to page 11 and page 15 for more information on Autosense)
Overcurrent protection on all outputs
Overtemperature limiting (not applicable with VI-J00 modules)
Output overvoltage protection (not applicable with VI-J00 modules)
Ride-Through time: >20 ms at nominal line (full load)
Size: 3 Phase MegaPAC: 4.9"H x 7.5"W x 12.3"L (124,5mm x 190,5mm x 312,4mm) Regular chassis
Safety Agency Approvals: CE Mark, UL, CSA, TUV
