Alarm lock trilogy DL4100 digital audit trail lockset
ALARM LOCK Trilogy With Audit Trail
With Privacy and Residency Features
IC Core for key override (Core is not included)
New Alarm Lock Trilogy DL4100 Electronic Digital Privacy Lock
Alarm Lock Systems, Inc., a Division of NAPCO, Amityville, NY, has recently added to its leading line of innovative electronic pushbutton access locks, introducing the new Trilogy DL4100 Electronic Digital Privacy Lock. Like Alarm Lock s popular Trilogy T2 keyless cylindrical lock, the standalone DL4100 uses a modified ANSI cylindrical door prep, for easy installation in about an hour, and can be used in any application large or small, from businesses & hospitals, to retail stores & universities. Supporting up to 2000 individual user codes (including management and master code overrides), the DL4100 has a unique privacy feature, activated with the push of a button on the back of the lock (inner door, adjacent to the battery compartment). Once the privacy button is depressed, the lock cannot be opened from the front entry side for a preprogrammed duration, which makes the product ideal for bathrooms, dressing or fitting rooms, and more.
To indicate that the room inside is occupied, and the lock is in Privacy Mode, the DL4100 s red LED, on the front keypad side of the door, will flash. When exiting the room, the occupant would simply rotate the handle and leave as they would normally. The lock will use a 3-second delay following the release of the lever switch, before it will accept an additional signal from the push button to re-enable the Privacy feature, eliminating the inadvertent reactivation of the Privacy Lock-out when the user exits Furthermore, the Lock also comes supplied with iconic signage indicating operation.
The Trilogy DL4100 also features an optional programmable Residency feature that allows users to close the door behind them and have the lock remain unlocked until it is physically relocked w/PIN or PROX device. The exit passage mode is ultimately convenient for those needing to make several trips in and out of the room or building.
Alarm Lock Systems...Protection Anywhere, Reliability Everywhere

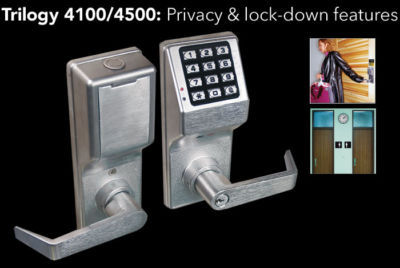

Trilogy cylindrical and mortise locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models) provide advanced keyless entry
Flashing LED outside indicates the room is occupied or lockedSimilar to the DL3200 electronic door lock features plus:
* 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
* Privacy Pushbutton Push button on inside door to temporarily lock-out keypad codes (programmable option)
* Occupied and multi-status LED indicator, flashes when privacy session is active

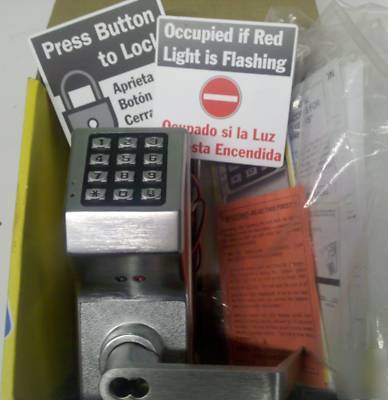

* Self-stick instructional signage, supplied (bilingual)
* Keypad or PC programming/reporting
* Right- or left-hand, classroom or deadbolt function models
* 1-3/8 mortise cylinder & ASA strike, matching function, supplied.
* 5AA battery-pak operated; 60,000 cycles, typ.
* 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic)
* Weatherproof -31 to +151 F (-35 to +66 C)
THIS IS A GREAT PRICE! GRAINGER SELLS THEM FOR $893.50!
