Cnc mill router dc servo motor drive pulse dir driver

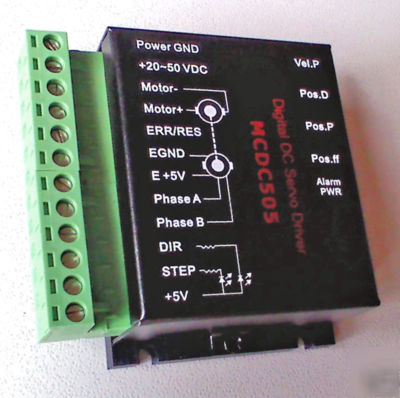

NEW Digital DC SERVO MOTOR DRIVER
low-cost digital closed loop DC servo drive.
Including the three Position velocity & current loop regulation
New Speed & Torque Control Mode
Easy improve step motor to Servo Motor
* Lock range +/- 128 count following error
* position control: optical isolation input pulse & direction (PULSE / DIR), or (CW / CCW) pulse signal
* speed control : analog input to 0V ~ +3.3 V voltage signal (from Pos.ff input )
* Torque Control:: analog input to 0V ~ +3.3 V voltage signal (from Pos.ff input )
* optical isolation servo reset input ERC
* optical isolation fault alarm output ALM
* current loop bandwidth: (-3dB) 2KHz (typical)
* speed loop bandwidth: 500Hz (typical)
* Max Pluse input 200kHz (typical)
* over-current, over-voltage, under voltage, overheating, & speeding protection
* green light is working , red light fault & off line
DRIVER CIM DC SERVO MOTOR BY MACH3
