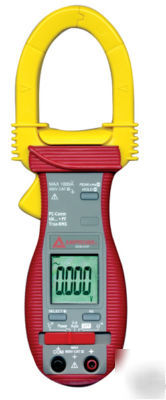

New amprobe acd-41PQ clamp on power quality meter
The ACD-40 s provide a simple and effective way to verify if the electrical system is affected by harmonics. Add on troubleshooting capabilities with the ACD-40PQ data logging feature or get complete Power analysis with the ACD-41PQ. Increase measuring efficiency with an optional PC interface kit.
THD-F is defined as: (Total Harmonic RMS / Fundamental RMS) x 100%
* Total Harmonics Distortion THD, AC/DC Voltage up to 600V, AC Current up to 1000A, Resistance, Frequency, Temperature
* Large, easy to read LCD display with backlight
* Carrying case, test leads, batteries (installed), thermocouple and manual included
AC Voltage Basic Accuracy**: +/-(1.0% Rdg + 5 LSD) @ 50 / 60
THD-F * Basic Accuracy**: 1.5% of Reading + 6d @ Fund Frequency
Temperature: -58 F to 572 (-50 C to 300 C)
