Nixie tube clock kit for in-14 nixie tubes
Suggested case for the clock (not included)
(Machined from solid aluminium - available separately - contact me for details)
The clock kit is fully inclusive, except for power supply and tubes:
All electronic components are included, except for the Nixie tubes :
All Transistors, Capacitors, Resistors, Diodes, Inductors, IC's etc..

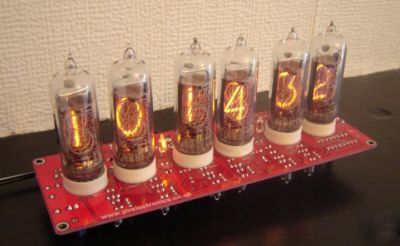

Clock PCB powered up. Tubes are NOT included
The kit comes with (via link to download site) a 21 page fully detailed user instruction guide to assembly. The assembly instructions include many detailed photos, and step - by - step instructions for building, testing and using the clock. The kit uses one surface mount device - the DS3231 TCXO IC as pictured below. The IC is not available in through-hole packaging. The comprehensive instructions explain a simple technique to reliably solder this device. The pitch of the pins is the widest of any surface mount device so soldering in place should be easily within the capabilities of the average electronics hobbyist.
Close-up of PCB showing timekeeping components
A set of new tubes can be added to the delivery for
