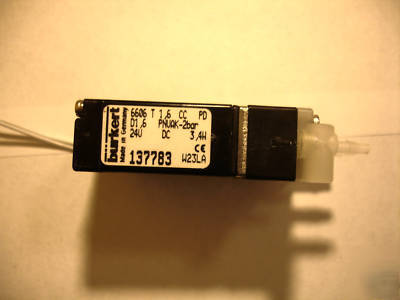

Burkert # 137783 3/2 way solenoid valve, 24 vdc, used
Burkert Fluid Control Systems Type 6606 3/2 Way Rocker Solenoid Valve, 24 VDC, Used, Qty 1
Suitable for analytical applications
Low dead volume, low internal volume
High back-pressure tightness
The direct-acting rocker solenoid valves with isolating diaphragm of Type 6606 (3/2 way) are high quality valves for analytical technology. They have minimal dead volume & internal volume with few crevices making them easy to flush out. The fluid only comes into contact with the body material & the FFKM seal. The heat transfer to the medium is minimal. The fluid path is isolated from the coil by a stainless steel plate. The valves are ideal for dosing, filling, mixing & distributing of small quantities of fluid for medical, analytical & laboratory applications.
Resistant to neutral and aggressive liquids and gases; see Burkert chemical resistance chart
Type 2506 on top 2 FEP flying leads, AWG 24, 500 mm long
As required, preferably with actuator in upright position
Circuit function T, direct acting, universal functions
500 mm Flying leads Electrical connection
