Square d transformer 15 kva 240 x 480 120/240 15KVA 1PH

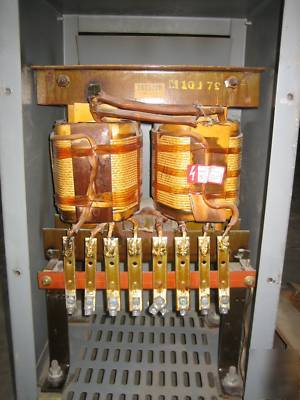

This Transformer is in Good Condition Both Externally and Internally.

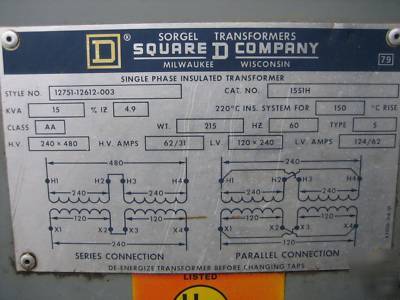

Single Phase Insulated Transformer
Style No: 12751-12612-003 Cat. No: 15S1H
kVAL 15 %IZ: 4.9 220 C Ins System for 150
Class AA Wt: 215 Hz: 60 Type S
HV: 240 x 480 HV Amps: 62/31 LV: 120/240 LV Amps: 124-62

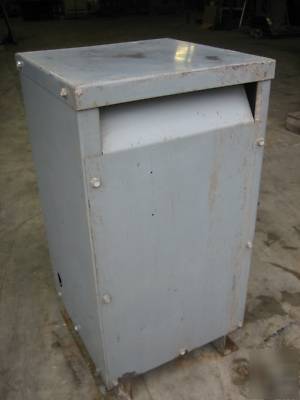

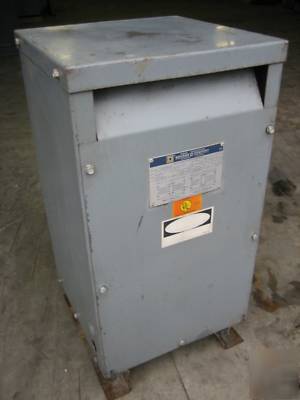

16"(Width) x 16" (Depth) x 31" (Height)
