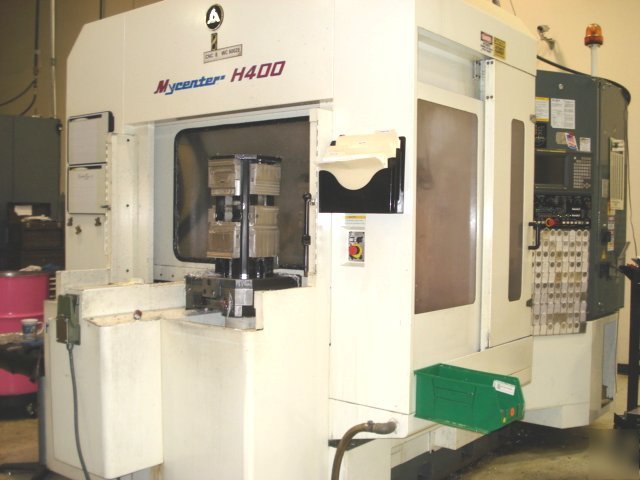

Kitamura mycenter H400 horizontal machining center 1998
We are pleased to offer the following for your consideration:
Pallet (2)........................ 15.75" x 15.75"
Load Capacity......................... 880 Lbs (400 Kg)
Travels (X)........................ 24.02"
(Y)........................ 20.08"
(Z)........................ 20.08"
Rapid Feedrates (ALL AXIS)............ 945 IPM
Cutting Feedrates (ALL AXIS).......... 393 IPM
Distance From Pallet Center to Spindle 6.3" to 26.4"
Distance From Pallet Surface to Spindle Center 2" to 21.8"
Pallet Indexing....................... 360,000 Positions (FULL 4th Axis)
Spindle Taper......................... 40 Bt
Spindle Motor......................... 15/20 HP
Spindle Speed......................... 100 to 10,000 RPM
ATC................................... 100 Stations
Tool Change Time...................... 1.7 Seconds
Machine Weight........................ 18,700 Lbs
* Fanuc 15MB CNC Control (Digital Drives)
* Coolant Thru Spindle (220 psi)
* 100 Position Automatic Tool Changer
* AVAILABLE FOR IMMEDIATE INSPECTION IN EAST COAST PLANT UNDER POWER *
NEW MACHINE COMING IN MID DEC. 2009 - THIS WILL BE AVAILABE MID DEC. 2009
