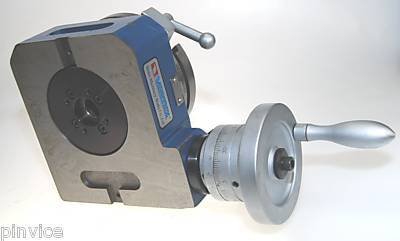

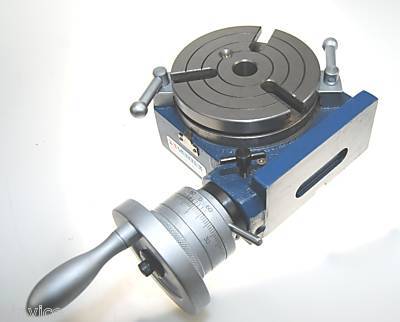

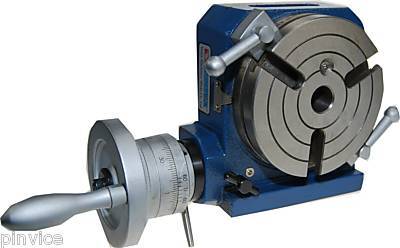

Vertex HV4 rotary table 4" 100MM horizontal vertical


GENUINE VERTEX HV4 ROTARY TABLE

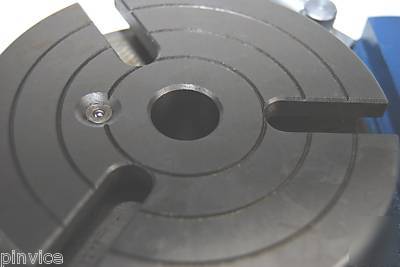

These tables have a totally ground finish which provides high precision and smooth rotation - everything you would expect from VERTEX. The centre of the table is fitted to an inner conical Morse tapered sleeve MT2.

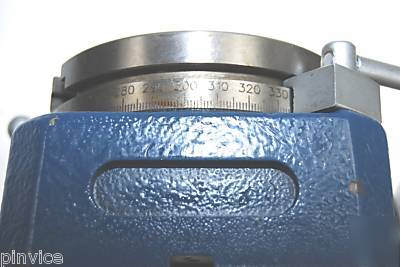

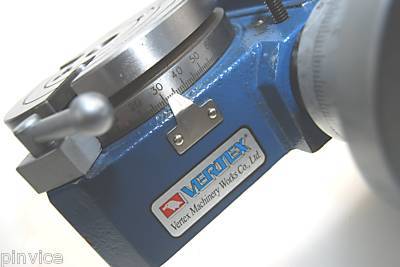

The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4' of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.
NOTE - THESE TABLES ARE OF A DIFFERENT DESIGN TO THE 6-8-10 & 12 " VERTEX TABLES THAT WE SELL- THEY DO NOT HAVE CONVENTIONAL MOUNTING SLOTS SO YOU WILL BE REQUIRED TO CLAMP THE TABLE TO YOUR MILLING MACHINE BY ANOTHER METHOD
Each Vertex rotary table is issued with a numbered test certificate.
SPAIN ,ITALY,GERMANY,NETHERLANDS,FRANCE.BELGIUM,SWEDEN,DENMARK ADD 24.00
ELSEWHERE -PRICE ON APPLICATION
