New tps/tdi SPS5333-6/12898281 28V 125A ac-dc rectifier

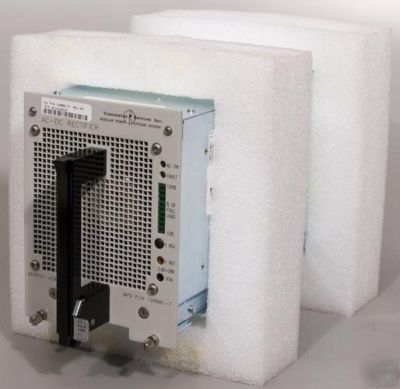

Telecommunications Power Systems/Transistor Devices SPS53333-6 Rectifier, Part Number: 09004-12891-7 +28 Volt, 125 Amp AC-DC Rectifier
Specifications are from TDI/TPS and are for a NexGen (which I believe this unit is) and may vary slightly due to upgrades, revisions and options this unit may or may not have.
The unit is believed to be new in the box. The bottom fo the unit has scratches like it was in a system but I believe that is from the factory.
Link to data sheet: TDI 24V 125A NexGen 7 Rectifier (This model is different but similar)
TDI Part Number: 09004-128981-7
Input Power: 208/220-240 VAC, 24 A, 50-60 Hz
Output Power: +27.5 VDC, 125 A
Output Short Circuit Current: < or = to 110 A
Max. Ambient Temperature: 50 C
* Modular, High Power Density
* Hot Bus Plug-In Capability
* UL, CUL and TUV Recognized
* International 50/60 Hertz Input
* Highly Accelerated Stress Screening Program
* AC Power "ON" Indicator (Green)
* Summary Fault Indicator (Amber)
* 2-Pole Circuit Breaker Protection
TDI-Telecommunications Power Systems rectifiers are the industry benchmark for reliability due to our field proven design. The light weight, compact modules feature power factor correction, automatic load sharing, current walk-in and international power input. Each module is equipped with representative telecommunication and cellular alarm outputs, and a bar chart ammeter. The hot bus plug-in capability allows for easy removal and replacement of rectifiers without interrupting the power bus or system operation.
The highly reliable 125 amp rectifier module is user friendly and minimizes installation, maintenance and system downtime. The front panel features a user interface that includes a FAULT LED, AC "ON" LED, output voltage adjustment, bar chart/ammeter and the AC ON/OFF circuit breaker. The breaker is linked to the module handle to ensure that it is in the off position when the rectifier is withdrawn from the rack assembly.
* Picture 5 - Front Panel, Close-up
