.25" - 2.5"huffman 5-axis,mdl.hs-75R,s/n HB122989-462

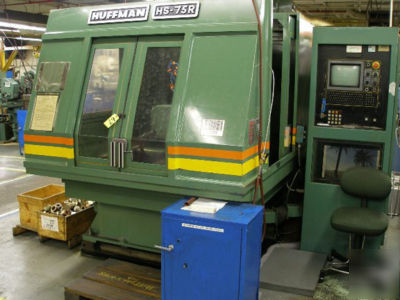

ONE Preowned HUFFMAN 5-AXIS CNC Tool & Cutter Grinder
MDL. HS-75R, S/N HB122989-462, NEW 1989
END MILL SHANK DIAMETER RANGE....................... .25"-2.5"
MAXIMUM FLUTE LENGTH......................................... 8"
MAXIMUM OVERALL LENGTH OF TOOL................... 10"
MAXIMUM CUTTER DIA. (ARBOR STYLE)................. 6"
Z-AXIS (WHEELHEAD) SLIDE ................ 12"
Y-AXIS (WHEELHEAD) SLIDE..................................... 15"
A-AXIS (CUTTER) ROTARY, WORK SPINDLE . 360 DEGREES
C-AXIS (CUTTER) ROTARY, ROTARY TABLE . 205 DEGREES
X-AXIS (CUTTER) MAIN BASE SLIDE.......................... 18"
U-AXIS (CUTTER) MANUAL.......................................... 8"
V-AXIS (CUTTER) MANUAL.......................................... 4"
WHEEL DIAMETER....................................................... 6"
WHEELHEAD SPINDLE SPEEDS................................. 6000 RPM
WHEELHEAD MOTOR................................................... 5 HP
FEED RATES, LINEAR AXES........................................ 0-200 IPM
FEED RATE, A-AXIS....................................................... 54,000 DPM
FEED RATE, C-AXIS....................................................... 1200 DPM
DIMENSIONS.................................................................. 192" X 165"
HEIGHT........................................................................... 94"
APPROX. WEIGHT.......................................................... 16,000 LBS.

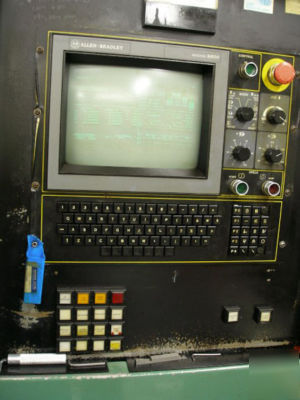

ALLEN BRADLEY 8600 CNC CONTROL
PRICE: ON SITE, (HAUPPAUGE/LONG ISLAND, NY) .. ... . $14,500.00
