3/8" single po check valve manual shutoff 30L/m 350BAR

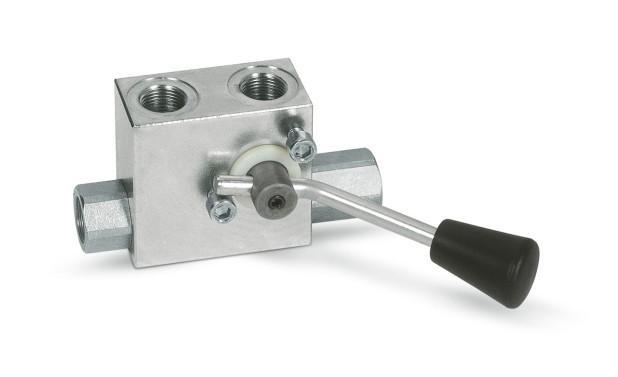

3/8" Single PO Check Valve With Manual Shut-Off 30l/m 350bar
3/8"SINGLE PILOT OPERATED CHECK VALVE WITH MANUAL SHUT-OFF
Pilot check valves are used to block the actuator in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. These valves are very safe, that's why they are ideal to be assembled on crane hydraulic cylinders.
Applications: connect v1 and v2 to pressure flow and c1 to the free flow side of the actuator and c2 to the actuator's side you want the flow to be blocked
ON REQUEST: WITH OUT SEAL ON PILOT PISTON, RIGHT OR LEFT SIDE LEVER (TO SPECIFY IN THE ORDER)
