All you need to start programming mitsubishi plc
This is an incredible package for everybody who needs to start up with Mitsubishi PLC
Offered here is programming services of your MITSUBISHI CPU, all models are covered.
Medoc2.40 and Medoc 2.41 (32 bit) MELSEC MEDOC (MS-DOS Based) is a software package that supports the FX and A Series PLCs.

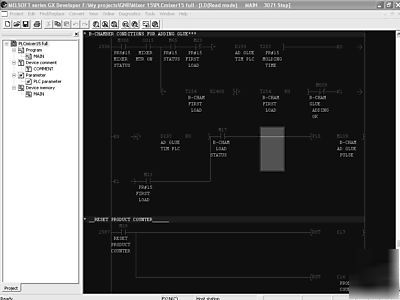

GX Developer FX 8.84 English only!
GX Simulator The GX Simulator is a software package which runs under Microsoft R Windows Operating System. Offline debugging is possible by adding the GX Simulator to a computer in which the GX Developer is installed. The offline debugging functions include the device monitor test and simulated operation of external device I/Os. As the GX Simulator allow sequence programs to be developed and debugged on a single computer, checking a modified program is quick and easy. GX Developer must be installed before these functions can be used.
. FX Training Software This is the FX training software. With this software you can study the basics of PLC ladder logic programming by using the FX-TRN-BEG-E software. The beginning lessons are set up for first time users and the later lessons gradually increase in difficulty.
PX Developer Using the PX Developer, process applications can be designed, debugged, monitored and maintained.
GX Configurator can be used to configure all Profibus/DP modules of Mitsubishi's modular PLCs. In addition to MELSEC PLCs it also supports connection of Mitsubishi frequency inverters, the E series of graphical control units and remote I/O modules.
AL-PCS/WIN -Windows based software package for Alpha Series.
Comlite 32 This program interrogates the Mitsubishi PLC s and determines the key word (password) on password protected PLC s. Often machinery and equipment is orphaned when the OEM goes out of business. Sometimes the password is misplaced or forgotten. This program will retrieve a lost password.
Mitsubishi FX Programmable Logic Controllers Applications and Programming(PDF)
This book comprehensively covers the programming and use of the complete range of Mitsubishi FX programmable controllers (PLCs)
Automated Manufacturing Systems; PLCS
Q: Is this ok to program FX-128Mr PLC and does it have pinout for cable for communications to plc to pc as well for this PLC also is the cable for this plc 9pin to 25 pin rs232 or is it another format .
A: It is ok for FX-128Mr. Cable you need is SC09. It's not a simple pinout, as the PLC end is RS422. There is electronics inside the cable to convert RS232 (PC end) to RS422 (PLC end). I have shematic from original manufacture and it is included.
Q: Are there any programms examples?
A : I added 17 folders with PLC Sample Code (anolog read-write, bar code reading and e.t.c) as a bonus.
Q: I want to program a Mitsi F1-60MR Controller.
I have old Medoc V 1.6 and cable SC-03S2 which plugs into a Ibm
PC.Serial port, but the converter attached has a 25 pin D type plug
For programming the F1 PLC you need a SC02N converter and a F2-20GF1 module. Connecting those to melsec medoc and you can program it.
Q: Is this a copy of the software, or is it the original?
A: Software and manuals comes from open ligal sources . We DO NOT SELL SOFTWARE . We chagre for researching and creating CD,helping to save time and money. Thank you!
This is the version does not require a dongle, token or Key to operate . Cables are not included. All the Manuals are on the CD's.
