2.2" magnetic cup neodymium cup magnet holder fastener

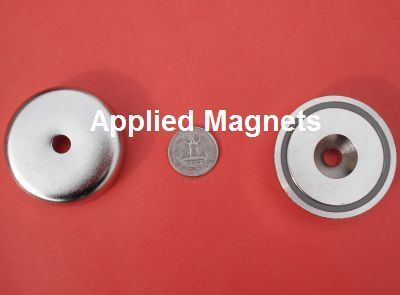

1 Piece Strong Neodymium Cup Magnet
Built with the strongest type of magnets - Rare Earth Neodymium Magnets
they are 5 to 10 times stronger than ceramic magnets
Size: 55.9 mm Diameter x 15.2 mm thick with 19.9 mm x 7.62 mm counter sink hole
2.2" Diameter x 0.6" thick with 0.78" x 0.3" counter sink hole
Work with #12, #14 or #16 flat head screws
Magnetized through thickness, poles on the flat surface
Estimated Holding Power: > 230 lbs
Made from strong rare-earth Neodymium Iron Boron magnets, these cup magnets offer much more holding power than ceramic cup magnets. This handy and useful strong magnet is embedded inside a Nickel coated steel cup to offer the maximum gripping power. The magnetic cup has a countersunk center hole that is perfect for mounting with a flat head screw or bolt. The steel cup offers protection for magnet and make the magnetic force concentrated on the magnet surface.
It is widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.
* Trusted and reliable global magnet distributor and supplier.
* Honesty and trustworthiness are our #1 priority.
* Proven track record and excellent reputation.
* All of our Neodymium Iron Boron magnets are NdFeB patent licensed.
* All of our Neodymium Iron Boron magnets are manufactured in ISO certified factory.
please visit our store inventory to purchase.
Magnetic water treatment, wind turbine generators, medical devices, loudspeakers, microphones, Motors, Actuators, Sensors, hard disc drives, lifting, magic, separation, metal detection, etc.
Please read before you purchase or use Neodymium magnets...
2. Neodymium magnets will lose their magnetic properties if heated above 175 F (80 C).
4. You should avoid having constant contact with magnets of any size and keep a distance of at least 3 feet to large magnets.
5. Children should not be allowed to handle neodymium magnets as they can be dangerous. Small magnets pose a choking hazard and should never be swallowed or inserted into any part of the body.
6. Under no circumstances should you try to cut, saw or drill the Neodymium magnets! Not only would the magnet break, but the resulting dust from the magnet is very flammable. Neodymium magnets should never be burned, as burning them will create toxic fumes.
7. All of our magnets are plated with a thin layer of nickel, nickel-copper-nickel or gold. This layer (in particular gold) can wear down in the normal use of the magnet over time.
