21K counts dc ac ω khz % dbm rel bench multimeter VA80

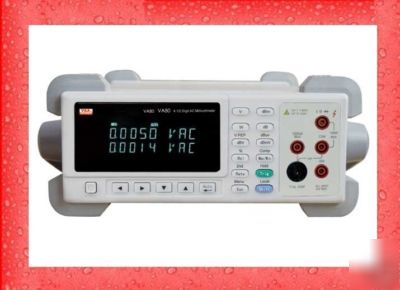

21000 counts bench multimeter - VA80
Large VFD dual display with high brightness
True RMS AC voltage and current measurements, frequency up to 100KHz
12 measurement functions, includingDCV/ACV, DCI/ACI, , frequency/period, diode, conduction, dBm, etc
Parameters AC+DC, AC+Hz, Readout+%, and Readout+dBm synchronously displayed
Measurement speed up to 15 times/second (VA80), and 30 times/second (VA81)
DCV measurement accuracy up to 0.02%, resolution of 10 V measured value displayed in the form of percentage
REL measurement mode to eliminate stray reading
Calibration without uncovering
Limit function (HI/IN/LO) for fast sorting
Standard RS232C communication interface providing
Convenient system communication
The follow specifications are in slow-speed mode.Please refer to manual for other specifications.
Working temperture & humidity 18 ~20 , 90%RH, and 70%RH(at resistance range of 5M and 50M )
Temperature coefficient:+0.1 specified accuracy/ (from 0 ~18 or 28 ~40 )
DC voltage, AC voltage, DC current, AC current, resistance, frequency, period, conduction, dioxide
Single display:all measurement parameters
Dual displa: V AC+V DC, I AC+I DC, V AC+Hz, I AC+Hz, Readout+%, Readout+dBm, Readout+Max/Min
To find out the best stable reading for each data block of the given reading number according to set accuracy
To judge HI, IN, LO and display, with ALARM at HI/LO(selectable)
