60" toshiba shibaura rotary surface grinder

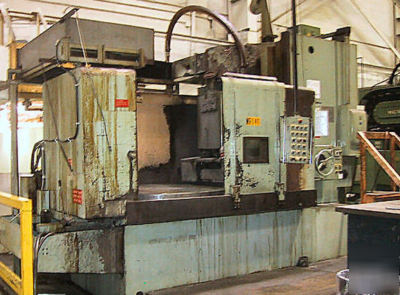

60" Toshiba Shibaura Rotary Surface Grinder
Magnetic Chuck Dimaeter ............. 61"
Maximum Swing ....................... 72"
Maximum Grind Height w/ New Stone ... 30"
Distance - Chuck Center to Guards ... 114"
Segmented Wheel Diameter ............ 32"
Number of Wheel Segments ............ 16
Wheel Motor ......................... 100 HP
Table Rotation Motor ................ 7.5 HP
Table Feed Motor .................... 2 HP
Table Rotation Speeds ............... 5-25 RPM
Electrical System ................... 440/3/60
Floor Space ......................... 17'5" x 10'2"
Height .............................. 13'4"
Approx. Weight ...................... 39,750 lbs
61" Magnetic Chuck & Neutrofier
