Balluff bes 356-E5-c-S4 24V prox sensors (box of 10)

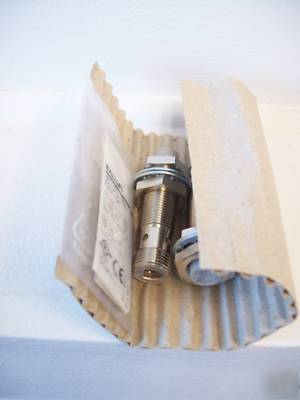

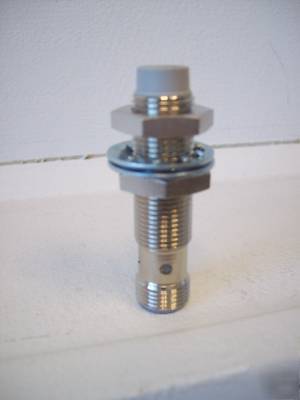

Balluff BES 356-E5-C-S4 12MM PNP 24VDC Prox Sensors

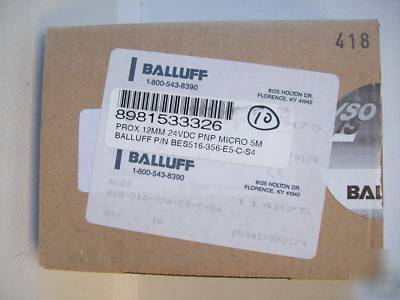

Price is for one box of 10 Proxes
I would consider selling individuals
Rated operating distance Sn 4mm
Assured operating distance Sa 0...3.2mm
Ambient temperature range -25...+70 C
Time delay before availability <= 10ms
Measurements BxHxT or DxT M12x1 x 49.4mm
Housing material nickel plated brass
Degree of protection IP68 acc. BWN Pr 20IP
Schock: Halfsinus, 30 gn, 11ms
Vibration: 55 Hz, 1mm Amplitude, 3 x 30 Minutes
switching function normally-open
Rated opertional voltage 24 DCV
Rated opertional current 200mA
max. switching frequency 2000Hz
No-load supply current <= 10mA
Protected against polarity reversal yes
Datenblatt by CD-ROM - 10/2004
Definitions see general catalog.
If not otherwise noted, ratings according to
IEC 60947-5-2 (DIN EN60947-5-2)
Phone (07158) 173-0 Fax (07158) 5010
